TDSP...H120 Horizontal Tee

1.5
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

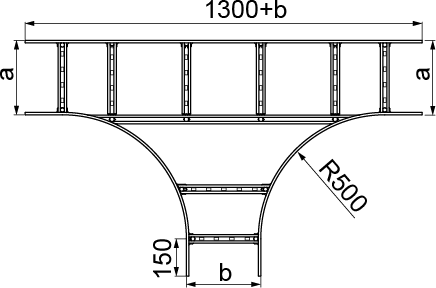

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation TDSC400/600/400H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a=b (mm) Weight 1 pc. (kg) Quantity (pcs.)
TDSP200H120
Cable Management Solutions – BAKS
422422
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
8.39
Cable Management Solutions – BAKS
1
Add
TDSP300H120
Cable Management Solutions – BAKS
422231
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
9.33
Cable Management Solutions – BAKS
1
Add
TDSP400H120
Cable Management Solutions – BAKS
422241
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
10.24
Cable Management Solutions – BAKS
1
Add
TDSP500H120
Cable Management Solutions – BAKS
422251
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
11.29
Cable Management Solutions – BAKS
1
Add
TDSP600H120
Cable Management Solutions – BAKS
422261
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
12.23
Cable Management Solutions – BAKS
1
Add
