Assembly of boxes to Cable Trays and Ladders

Material

Steel, strip-galv. acc. to
the Sendzimir method to PN-EN 10346:2015-09
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the Mounting Plate assembly should be used:
- for the Mounting Plate: 2 sets of srew SGKM6x16
- for the Cable Tray: 2 sets of screw SGKM6x12



Note!
-to fix the box 2 Mounting Plates UPPO should be used for 100
and 150 mm wide Cable Trays

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

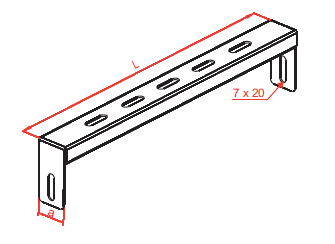

Symbol Catalogue number Width a (mm) Length L (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
33 mm
Cable Management Solutions – BAKS
mm
UPPO100
Cable Management Solutions – BAKS
800506
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
105 mm
Cable Management Solutions – BAKS
0.13
Cable Management Solutions – BAKS
20
Add
UPPO150
Cable Management Solutions – BAKS
800511
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
155 mm
Cable Management Solutions – BAKS
0.18
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
33 mm
Cable Management Solutions – BAKS
mm
UPPO200
Cable Management Solutions – BAKS
800606
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
205 mm
Cable Management Solutions – BAKS
0.23
Cable Management Solutions – BAKS
20
Add
UPPO300
Cable Management Solutions – BAKS
800706
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
305 mm
Cable Management Solutions – BAKS
0.31
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
33 mm
Cable Management Solutions – BAKS
mm
UPPO400
Cable Management Solutions – BAKS
800806
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
405 mm
Cable Management Solutions – BAKS
0.39
Cable Management Solutions – BAKS
10
Add
UPPO500
Cable Management Solutions – BAKS
800707
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
505 mm
Cable Management Solutions – BAKS
0.47
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
33 mm
Cable Management Solutions – BAKS
mm
UPPO600
Cable Management Solutions – BAKS
800808
Cable Management Solutions – BAKS
33
Cable Management Solutions – BAKS
605 mm
Cable Management Solutions – BAKS
0.56
Cable Management Solutions – BAKS
10
Add
