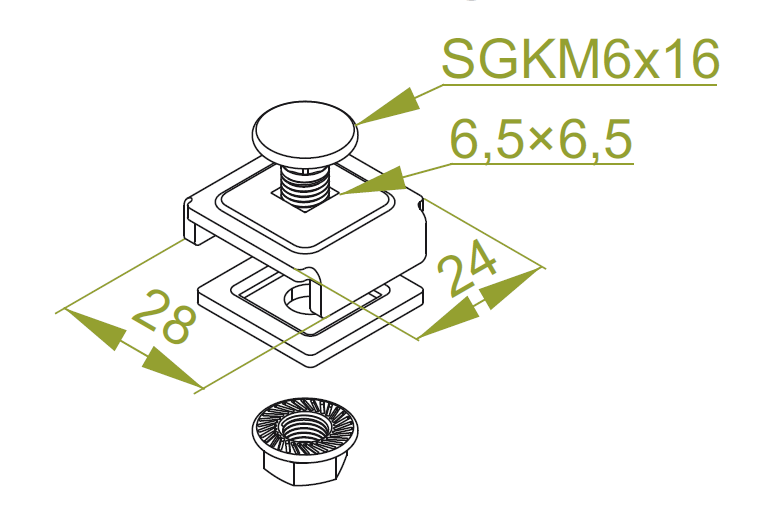

USSN/USSO Joint Connector

Cable Management Solutions – BAKS
Information

Connecting wire me sh cable trays

Material

Electro-galvanised steel (EGS)
Available finishes:
F - steel galvanized using zinc flake coating
PN-EN ISO 10683:2014-09
E - stainless steel (SS), grade 1.4301 (AISI304)

Additional information

To join up wire mesh cable trays for the following widths:
- 60 mm use 2 x USSN/USSO
- 100 ÷ 200 mm use min. 3 x USSN/USSO
- 300 ÷ 400 mm use min. 4 x USSN/USSO
- 500 ÷ 600 mm use min. 5 x USSN/USSO

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Weight 1 pc. (kg) Quantity (pcs.) Plik 3D
USSN/USSO
Cable Management Solutions – BAKS
900201
Cable Management Solutions – BAKS
0.04
Cable Management Solutions – BAKS
100
Plik *.std Add
