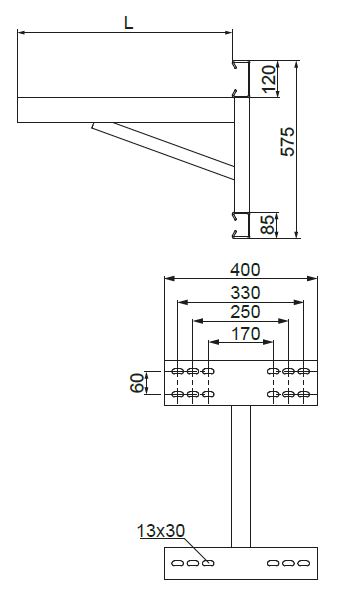

Mounting trays, cable ladders, pipes and other elements, with heavy loads. Together with the CE60H40/... or CMT41H41/... channel which extends the wall bracket, it is possible to offset the cable route from the wall.
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
Available finishes:
L - painting in standard RAL colour
– when mounting the wall bracket to the steel structure, use UDCN10 – UDCN40 clamping brackets
– selection of brackets depends on the thickness of the purlin
– min. number of clamping brackets when mounting to a steel structure – 4 sets
– max. number of clamping brackets when mounted to a steel structure (max. loads) – 6 sets
– min. number of expansion bolts when mounting to concrete – 4 pcs.
– max. number of expansion bolts when mounting to concrete (max. loads) – 6 pcs.
