WMCN... Bracket

0.0
Information

Mounting trays, cable ladders, pipes and other elements, with heavy loads.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– the modified WMCN wall bracket... is a new, less expensive version of the WMC/WMCO... wall bracket

– on request possible to make wall brackets of non-standard lengths

– single bolt mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

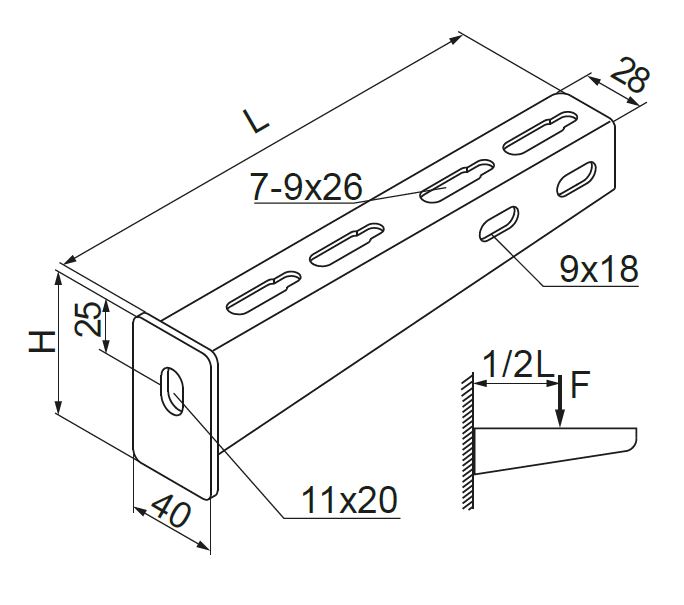

Symbol Catalogue number Length L (mm) Height H (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.) 3D file
WMCN100
Cable Management Solutions – BAKS
712010
Cable Management Solutions – BAKS
115 mm
Cable Management Solutions – BAKS
65
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
0.17
Cable Management Solutions – BAKS
50 		Plik *.std Add
WMCN150
Cable Management Solutions – BAKS
712015
Cable Management Solutions – BAKS
165 mm
Cable Management Solutions – BAKS
65
Cable Management Solutions – BAKS
1.40
Cable Management Solutions – BAKS
0.20
Cable Management Solutions – BAKS
50 		Plik *.std Add
WMCN200
Cable Management Solutions – BAKS
712020
Cable Management Solutions – BAKS
215 mm
Cable Management Solutions – BAKS
65
Cable Management Solutions – BAKS
1.40
Cable Management Solutions – BAKS
0.24
Cable Management Solutions – BAKS
30 		Plik *.std Add
WMCN300
Cable Management Solutions – BAKS
712030
Cable Management Solutions – BAKS
315 mm
Cable Management Solutions – BAKS
75
Cable Management Solutions – BAKS
1.40
Cable Management Solutions – BAKS
0.40
Cable Management Solutions – BAKS
30 		Plik *.std Add
WMCN400
Cable Management Solutions – BAKS
712040
Cable Management Solutions – BAKS
415 mm
Cable Management Solutions – BAKS
75
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
0.60
Cable Management Solutions – BAKS
20 		Plik *.std Add
WMCN500
Cable Management Solutions – BAKS
712050
Cable Management Solutions – BAKS
515 mm
Cable Management Solutions – BAKS
90
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
0.86
Cable Management Solutions – BAKS
20 		Plik *.std Add
WMCN600
Cable Management Solutions – BAKS
712060
Cable Management Solutions – BAKS
615 mm
Cable Management Solutions – BAKS
90
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
20 		Plik *.std Add
