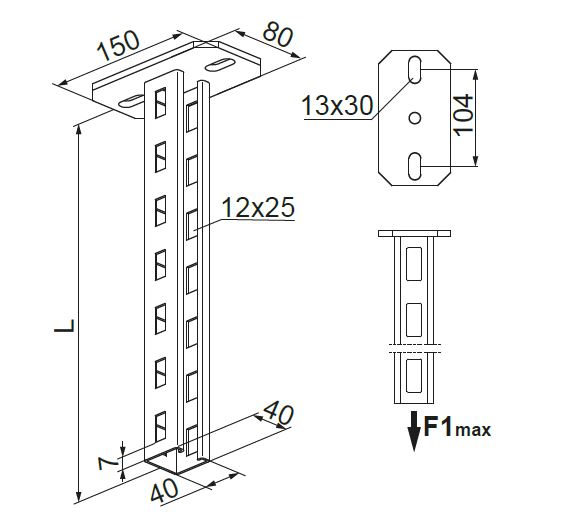

WPCW/WPCO... Ceiling Bracket

0.0 Cable Management Solutions – BAKS
Information

Suspending cable routes.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– increased strength parameters

– stepless adjustment of the height of the wall bracket mounting from the open part of the channel

– stable mounting screwed and snap-in wall brackets

– for mounting wall brackets to the open side of the support bracket it is recommended to use PZC40 or PZC100 channel plates

– BR35... spacer is recommended for mounting wall brackets to side holes

– each bracket has NO40x40N protective cap included

– the chart below is for a single-sided load on the bracket, for double-sided loading of the bracket, the values should be doubled (the load must be uniform)

– more brackets in the ceiling sling section

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.) 3D file
WPCW/WPCO200
Cable Management Solutions – BAKS
750620
Cable Management Solutions – BAKS
215 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
0.90
Cable Management Solutions – BAKS
20
Plik *.std Add
WPCW/WPCO300
Cable Management Solutions – BAKS
750630
Cable Management Solutions – BAKS
315 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
1.10
Cable Management Solutions – BAKS
20
Plik *.std Add
WPCW/WPCO400
Cable Management Solutions – BAKS
750640
Cable Management Solutions – BAKS
415 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO500
Cable Management Solutions – BAKS
750650
Cable Management Solutions – BAKS
515 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
1.47
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO600
Cable Management Solutions – BAKS
750660
Cable Management Solutions – BAKS
615 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
1.67
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO700
Cable Management Solutions – BAKS
750670
Cable Management Solutions – BAKS
700 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
1.86
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO800
Cable Management Solutions – BAKS
750680
Cable Management Solutions – BAKS
800 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
2.10
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO900
Cable Management Solutions – BAKS
750690
Cable Management Solutions – BAKS
900 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
2.25
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO1000
Cable Management Solutions – BAKS
750611
Cable Management Solutions – BAKS
1 000 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
2.45
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO1100
Cable Management Solutions – BAKS
750511
Cable Management Solutions – BAKS
1 100 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
2.70
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO1200
Cable Management Solutions – BAKS
750512
Cable Management Solutions – BAKS
1 200 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
2.95
Cable Management Solutions – BAKS
10
Plik *.std Add
WPCW/WPCO1500
Cable Management Solutions – BAKS
750515
Cable Management Solutions – BAKS
1 500 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
3.26
Cable Management Solutions – BAKS
4
Plik *.std Add
WPCW/WPCO2000
Cable Management Solutions – BAKS
750612
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
17
Cable Management Solutions – BAKS
4.90
Cable Management Solutions – BAKS
4
Plik *.std Add
Examples
