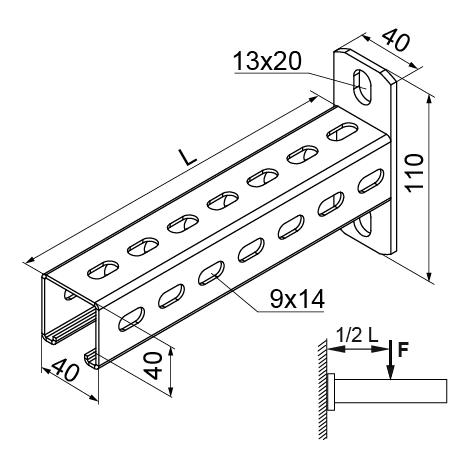

WPTS... Universal Bracket

0.0
Information

Mounting mesh trays, regular trays, cable ladders, pipes and other elements, especially with limited space for cable routes (e.g. above suspended ceilings).

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– use ZS/ZSO clamps or UKWD or USKS brackets to mount the mesh tray to the wall bracket

– each wall bracket has NOW40x40 protective cap included

– wall brackets can be mounted directly to the wall or WPCW/WPCO ceiling bracket or channel such as CWC40H40

– wall brackets can be used vertically and horizontally

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Length L (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.)
WPTS100
Cable Management Solutions – BAKS
902412
Cable Management Solutions – BAKS
130 mm
Cable Management Solutions – BAKS
3
Cable Management Solutions – BAKS
0.48
Cable Management Solutions – BAKS
30
Add
WPTS150
Cable Management Solutions – BAKS
902417
Cable Management Solutions – BAKS
180 mm
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
0.57
Cable Management Solutions – BAKS
30
Add
WPTS200
Cable Management Solutions – BAKS
902422
Cable Management Solutions – BAKS
230 mm
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
0.65
Cable Management Solutions – BAKS
30
Add
WPTS300
Cable Management Solutions – BAKS
902432
Cable Management Solutions – BAKS
330 mm
Cable Management Solutions – BAKS
1.70
Cable Management Solutions – BAKS
0.92
Cable Management Solutions – BAKS
30
Add
WPTS400
Cable Management Solutions – BAKS
902442
Cable Management Solutions – BAKS
430 mm
Cable Management Solutions – BAKS
1.60
Cable Management Solutions – BAKS
1.12
Cable Management Solutions – BAKS
20
Add
WPTS500
Cable Management Solutions – BAKS
902452
Cable Management Solutions – BAKS
530 mm
Cable Management Solutions – BAKS
1.40
Cable Management Solutions – BAKS
1.33
Cable Management Solutions – BAKS
20
Add
WPTS600
Cable Management Solutions – BAKS
902462
Cable Management Solutions – BAKS
630 mm
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
1.39
Cable Management Solutions – BAKS
20
Add
WPTS700
Cable Management Solutions – BAKS
902472
Cable Management Solutions – BAKS
730 mm
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
1.78
Cable Management Solutions – BAKS
8
Add
WPTS800
Cable Management Solutions – BAKS
902482
Cable Management Solutions – BAKS
830 mm
Cable Management Solutions – BAKS
1.10
Cable Management Solutions – BAKS
1.93
Cable Management Solutions – BAKS
8
Add
WPTS900
Cable Management Solutions – BAKS
902492
Cable Management Solutions – BAKS
930 mm
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
2.16
Cable Management Solutions – BAKS
8
Add
WPTS1000
Cable Management Solutions – BAKS
902414
Cable Management Solutions – BAKS
1 030 mm
Cable Management Solutions – BAKS
0.90
Cable Management Solutions – BAKS
2.38
Cable Management Solutions – BAKS
8
Add
Examples
