WTK500 Triangular profile bracket

3.0 Cable Management Solutions – BAKS
Information

Cable route support.

Material

MC - steel in Mangelis® coating

Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for wall/ceiling mounting, we suggest 2pcs. PSRM10x90

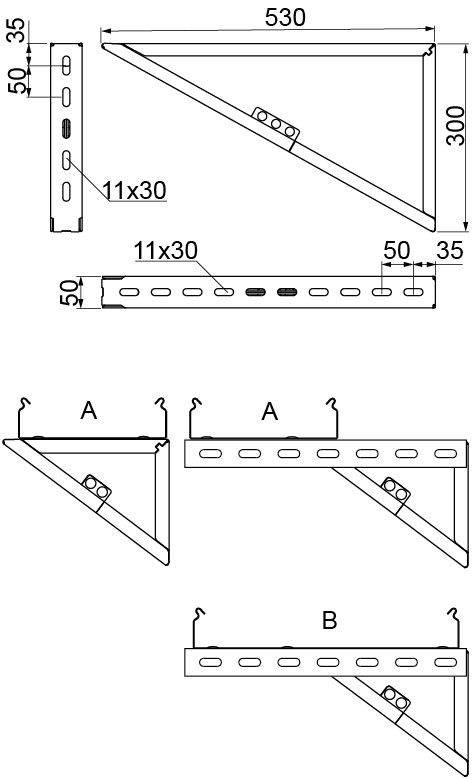

– the wall bracket is dedicated to the specified width of the cable route (A)

– laying a wider cable route (B) or distancing from a nominal wall (A) – in the case of bypassing an obstacle – is possible after mounting a longer CE60H40/... channel on the wall bracket

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.)
WTK500
Cable Management Solutions – BAKS
721450
Cable Management Solutions – BAKS
5.50
Cable Management Solutions – BAKS
2.41
Cable Management Solutions – BAKS
1
