WWCN... Bracket

0.0
Information

Mounting trays, cable ladders, pipes and other elements, with heavy loads.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– the modified WWCN wall bracket... is a new, less expensive version of the WWC... wall bracket

– on request possible to make wall brackets of non-standard lengths

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

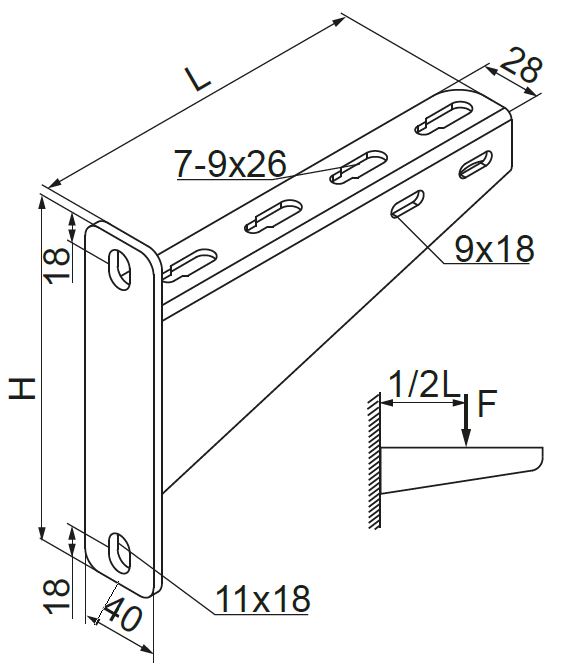

Symbol Catalogue number Length L (mm) Height H (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.) 3D file
WWCN100
Cable Management Solutions – BAKS
712110
Cable Management Solutions – BAKS
130 mm
Cable Management Solutions – BAKS
140
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
0.20
Cable Management Solutions – BAKS
50 		Plik *.std Add
WWCN200
Cable Management Solutions – BAKS
712120
Cable Management Solutions – BAKS
230 mm
Cable Management Solutions – BAKS
140
Cable Management Solutions – BAKS
1.80
Cable Management Solutions – BAKS
0.29
Cable Management Solutions – BAKS
50 		Plik *.std Add
WWCN300
Cable Management Solutions – BAKS
712130
Cable Management Solutions – BAKS
330 mm
Cable Management Solutions – BAKS
155
Cable Management Solutions – BAKS
1.80
Cable Management Solutions – BAKS
0.47
Cable Management Solutions – BAKS
20 		Plik *.std Add
WWCN400
Cable Management Solutions – BAKS
712140
Cable Management Solutions – BAKS
430 mm
Cable Management Solutions – BAKS
155
Cable Management Solutions – BAKS
1.80
Cable Management Solutions – BAKS
0.75
Cable Management Solutions – BAKS
20 		Plik *.std Add
WWCN500
Cable Management Solutions – BAKS
712150
Cable Management Solutions – BAKS
530 mm
Cable Management Solutions – BAKS
170
Cable Management Solutions – BAKS
1.70
Cable Management Solutions – BAKS
0.98
Cable Management Solutions – BAKS
10 		Plik *.std Add
WWCN600
Cable Management Solutions – BAKS
712160
Cable Management Solutions – BAKS
630 mm
Cable Management Solutions – BAKS
170
Cable Management Solutions – BAKS
1.70
Cable Management Solutions – BAKS
1.10
Cable Management Solutions – BAKS
10 		Plik *.std Add
Examples
