Information

Mounting cable trays, cable ladders, pipes and other elements to steel structures based on channels with the

width of ~40 mm, especially with limited space for cable routes (such as above suspended ceilings).

Mounting cable trays, cable ladders, pipes and other elements to steel structures based on channels with the width of ~40 mm, especially with limited space for cable routes (such as above suspended ceilings).

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– on request possible to make wall brackets of non-standard lengths

– recommended mounting to an open channel wall with the width of ~40 mm using SRM10x25 bolts, which allows stepless adjustment of the position

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

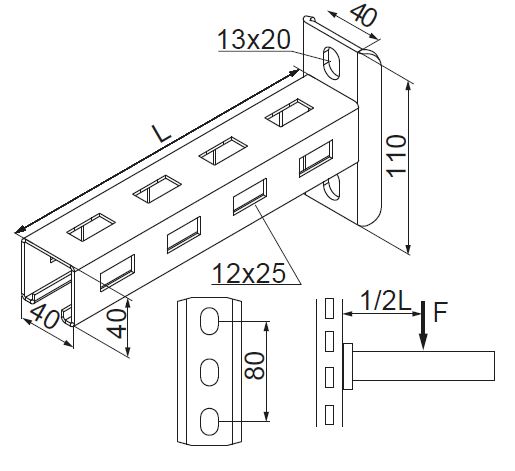

Symbol Catalogue number Length L (mm) distance to bracket base Maximum load Fmax(kN) Weight 1 pc. (kg) Quantity (pcs.)
WWT100
Cable Management Solutions – BAKS
711010
Cable Management Solutions – BAKS
115 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
3
Cable Management Solutions – BAKS
0.51
Cable Management Solutions – BAKS
30
Add
WWT150
Cable Management Solutions – BAKS
711015
Cable Management Solutions – BAKS
165 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
0.60
Cable Management Solutions – BAKS
30
Add
WWT200
Cable Management Solutions – BAKS
711020
Cable Management Solutions – BAKS
215 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
0.69
Cable Management Solutions – BAKS
30
Add
WWT300
Cable Management Solutions – BAKS
711030
Cable Management Solutions – BAKS
315 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.70
Cable Management Solutions – BAKS
0.96
Cable Management Solutions – BAKS
30
Add
WWT400
Cable Management Solutions – BAKS
711040
Cable Management Solutions – BAKS
415 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.60
Cable Management Solutions – BAKS
1.15
Cable Management Solutions – BAKS
30
Add
WWT500
Cable Management Solutions – BAKS
711050
Cable Management Solutions – BAKS
515 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.40
Cable Management Solutions – BAKS
1.37
Cable Management Solutions – BAKS
20
Add
WWT600
Cable Management Solutions – BAKS
711060
Cable Management Solutions – BAKS
615 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.30
Cable Management Solutions – BAKS
1.43
Cable Management Solutions – BAKS
10
Add
WWT700
Cable Management Solutions – BAKS
711070
Cable Management Solutions – BAKS
715 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
1.82
Cable Management Solutions – BAKS
8
Add
WWT800
Cable Management Solutions – BAKS
711080
Cable Management Solutions – BAKS
815 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1.10
Cable Management Solutions – BAKS
1.97
Cable Management Solutions – BAKS
8
Add
WWT900
Cable Management Solutions – BAKS
711090
Cable Management Solutions – BAKS
915 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
2.20
Cable Management Solutions – BAKS
8
Add
WWT1000
Cable Management Solutions – BAKS
711011
Cable Management Solutions – BAKS
1 015 mm
Cable Management Solutions – BAKS
35
Cable Management Solutions – BAKS
0.90
Cable Management Solutions – BAKS
2.43
Cable Management Solutions – BAKS
8
Add
