Product description:
The mix of concrete, mortar and light additives.
APPLICATION:
PROMASTOP Type-S Fire-Stop Mortar allows for
making cable passages in the fire resistance classes
from EI 30 to EI 120. According to the specification
from the manufacturer universal passages
are allowable with the mix of electric conduits,
plastic tubes (ø 200mm max.), steel and cast iron
tubes (ø 168.3mm max.).
Efficiency:
From 1 sack bag (20kg) of dry mortar and about 7.5kg
of water you will get after appropriate preparation
about 22 liters of ready mortar
Additional information:
Consumption: 1 sack bag (20kg)=~ 22 litres
mortar (0.022m3)
Warehousing: Store in a dry place on wooden pallets
Shelf use: approx. 18 months
Technical Approval: AT-15-5730/2007
Certificate of Conformity: ITB 0949/W
Declaration of Conformity: no. DZ-22
nstructions for use:
• arrange the cable route through passages sealed with Fire-Stop
Mortar ZOS
• maximum cable load allowed in a passage will not exceed 60%
• the wall and ceiling thickness to construct the passage will not
fall below:
-120mm for concrete walls
-150mm for solid brick and cell concrete walls
-180mm for the ceiling
• the first of the cable route supports will be installed at a distance
of not less than 100mm from the barrier
• maximum passage dimensions in the ceiling will not exceed
1000mm
in width with unlimited passage length

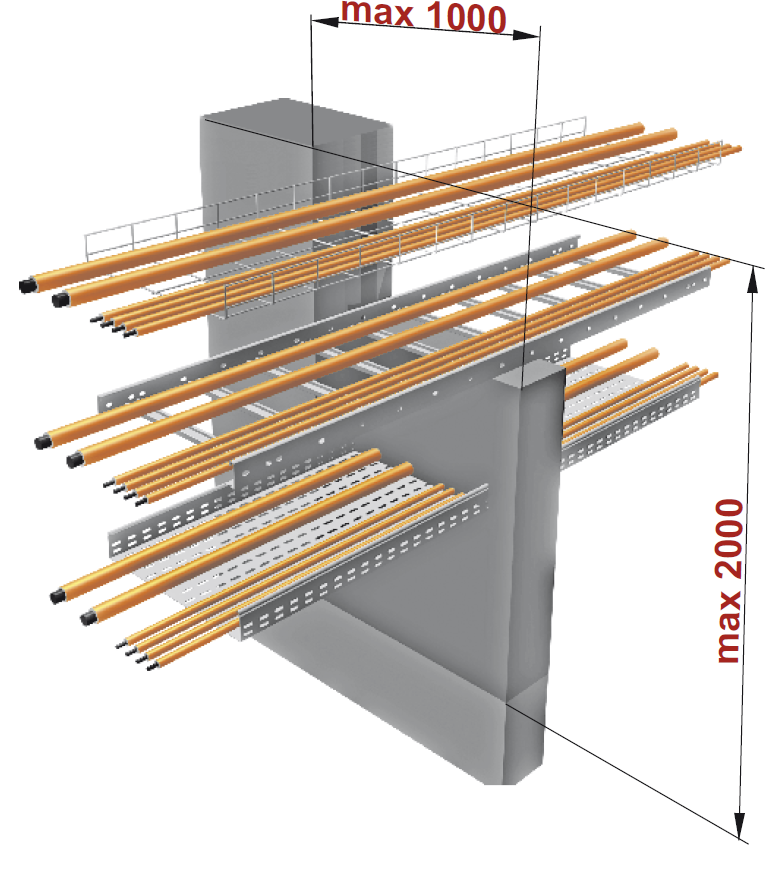

• maximum passage dimensions in the wall - as shown in the
drawing below
