1.0

Information

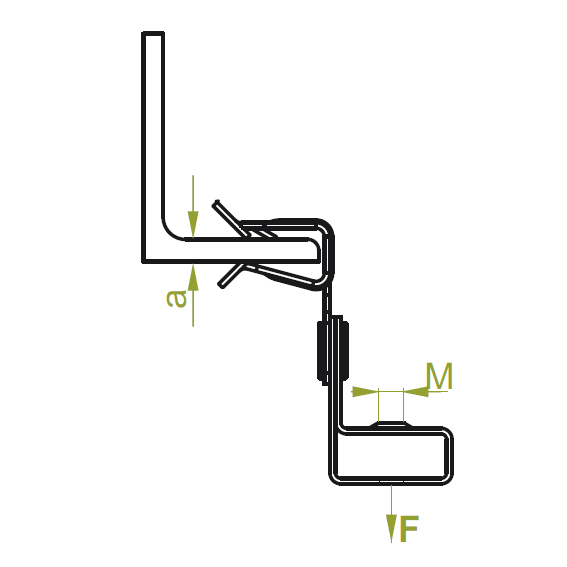

Suspending light structures to open profiles.

Material

SCS - galvanised spring steel

Product versions

Add

Symbol	Catalogue number	Size M (mm)	Thickness a	Maximum load Fmax(kN)	Quantity (pcs.)
ZSP1M6/2	790101	6	2-3	0.70	100	Add
ZSP1M6/3	790201	6	3-8	0.90	100	Add
ZSP1M6/8	790301	6	8-14	0.90	100	Add
ZSP1M6/14	790401	6	14-20	0.90	100	Add
ZSP1M8/2	790501	8	2-3	0.70	100	Add
ZSP1M8/3	790601	8	3-8	0.90	100	Add
ZSP1M8/8	790701	8	8-14	0.90	100	Add
ZSP1M8/14	790801	8	14-20	0.90	100	Add
ZSP1M10/2	790901	10	2-3	0.70	100	Add
ZSP1M10/3	791001	10	3-8	0.90	100	Add
ZSP1M10/8	791101	10	8-14	0.90	100	Add
ZSP1M10/14	791201	10	14-20	0.90	100	Add
