ZT... Tiger Clip

0.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Suspending light structures to open profiles.

Material

SCS - galvanised spring steel

Additional information

Quick installation to steel structures

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

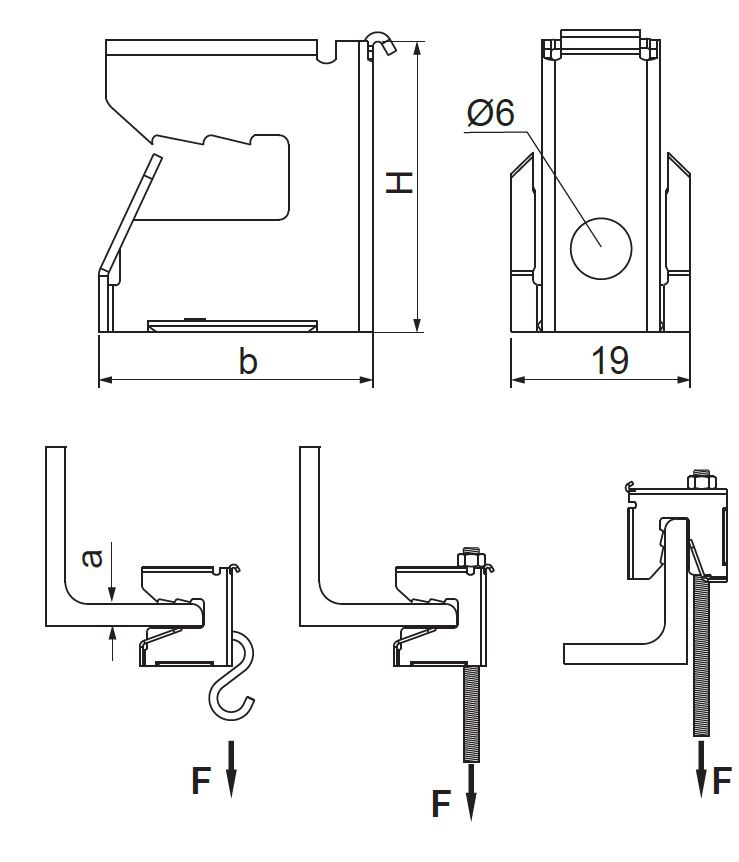

Symbol Catalogue number Height H (mm) Size b (mm) Dimension a min. (mm) Dimension a max. (mm) Maximum load Fmax(kN) Quantity (pcs.)
ZT8
Cable Management Solutions – BAKS
790102
Cable Management Solutions – BAKS
30
Cable Management Solutions – BAKS
30
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
8
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
100 		Add
ZT16
Cable Management Solutions – BAKS
790202
Cable Management Solutions – BAKS
38
Cable Management Solutions – BAKS
32
Cable Management Solutions – BAKS
8
Cable Management Solutions – BAKS
16
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
100 		Add
