BDHM120x240 I-beam plate

3.0 Cable Management Solutions – BAKS
Information

Used for mounting wall brackets, bases, etc. to I-beams. Infinitely adjustable mounting (fits I-beams in the range 120–240) and high strength emphasise the versatility of the element.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

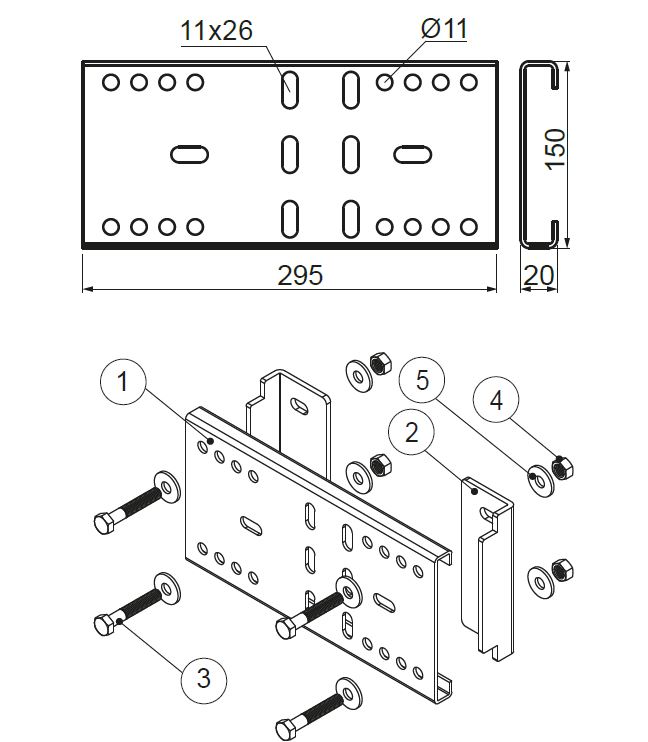

– the set includes: 1. BDHM120x240 I-beam installation plate – 1 pc. 2. BDHM (60x154) I-beam clamping bracket – 2 pcs. 3. M10x60 bolt – 4 pcs. 4. M10 nut – 4 pcs. 5. PW10 large washer – 8 pcs.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Height H (mm) Length L (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
mm
BDHM120×240
Cable Management Solutions – BAKS
752700
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
20
Cable Management Solutions – BAKS
295 mm
Cable Management Solutions – BAKS
2.80
Cable Management Solutions – BAKS
6
