Used for mounting wall brackets, bases, etc. to I-beams. Infinitely adjustable mounting (fits I-beams in the
range 160–320) and high strength emphasise the versatility of the element.
Used for mounting wall brackets, bases, etc. to I-beams. Infinitely adjustable mounting (fits I-beams in the range 160–320) and high strength emphasise the versatility of the element.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
L - painting in standard RAL colour
Additional information

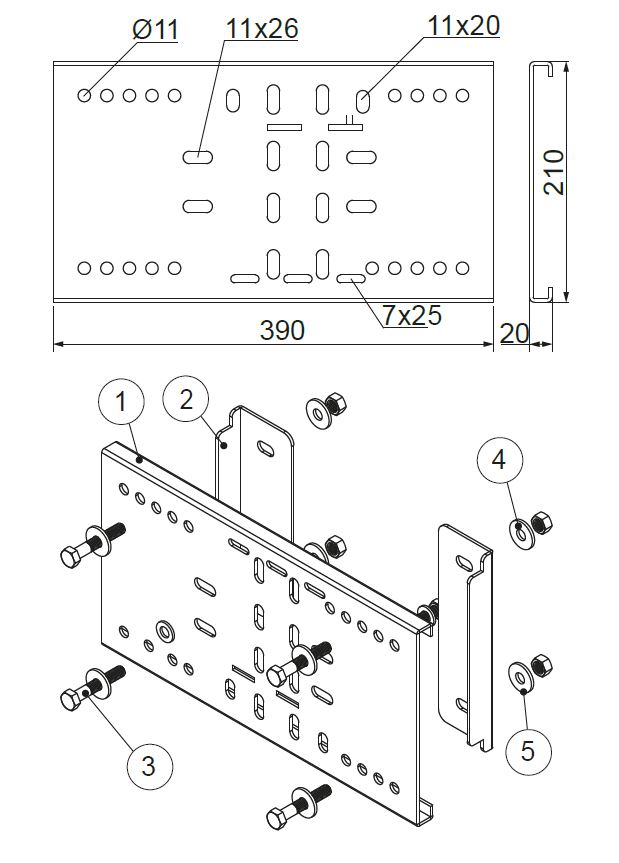

– the set includes: 1. BDH160x320 I-beam installation plate – 1 pc. 2. BDH (60x154) I-beam clamping bracket – 2 pcs. 3. M10x60 bolt – 4 pcs. 4. M10 nut – 4 pcs. 5. PW10 large washer – 8 pcs.
