CZKBP...H60 Horizontal Cross-over

1.5 Cable Management Solutions – BAKS
Information

Branching out cable routes.

Material

Steel, strip-galv. acc. to the Sendzimir
method PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

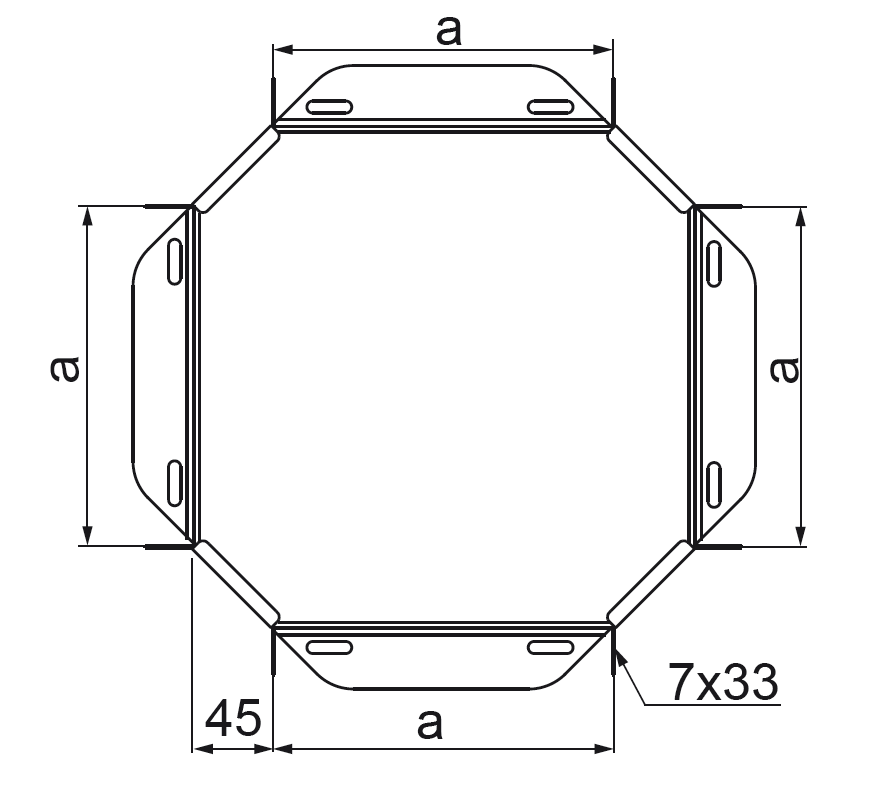

In case of special orders please specify dimensions a, b, c and d.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Weight 1 pc. (kg) Quantity (pcs.) Size a (mm)
CZKBP400H60
Cable Management Solutions – BAKS
161404
Cable Management Solutions – BAKS
3.38
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
400
Add
CZKBP500H60
Cable Management Solutions – BAKS
161504
Cable Management Solutions – BAKS
4.71
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
500
Add
CZKBP600H60
Cable Management Solutions – BAKS
161604
Cable Management Solutions – BAKS
6.26
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
600
Add
