KKP...H60 Horizontal Bend 90°

1.5 Cable Management Solutions – BAKS
Information

Diversions in cable routing.

Material

Steel, strip-galv. acc. to the Sendzimir
method PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

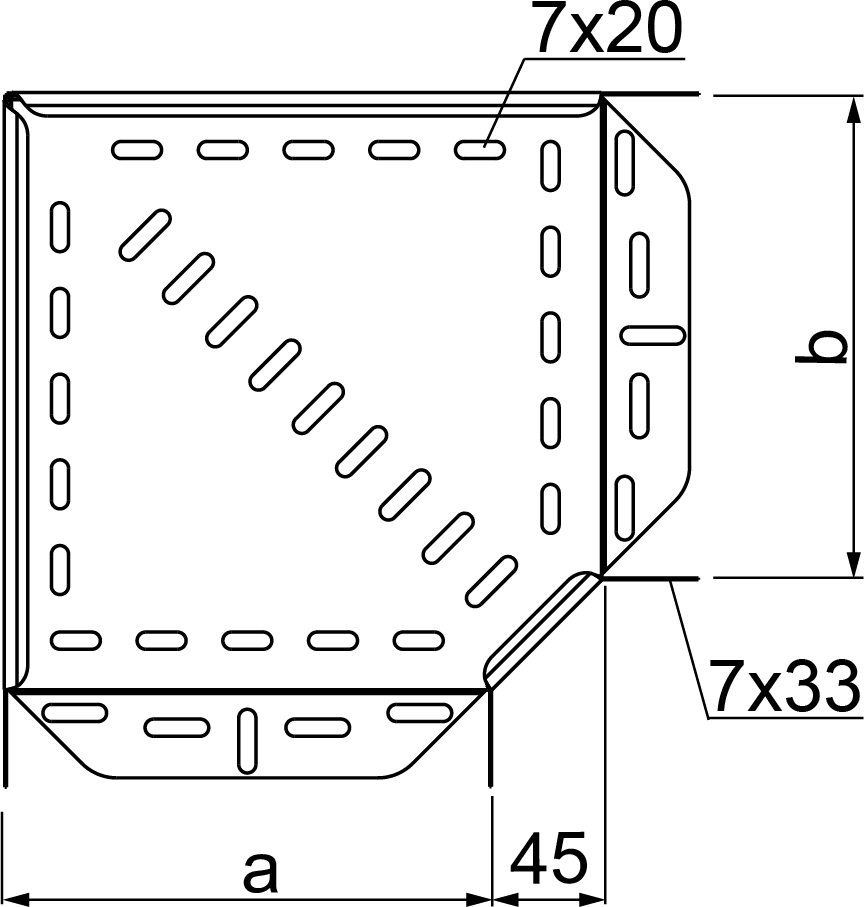

In case of special orders please specify dimensions a and b.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Weight 1 pc. (kg) Quantity (pcs.) Size a=b (mm)
KKP400H60
Cable Management Solutions – BAKS
162840
Cable Management Solutions – BAKS
2.95
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
400
Add
KKP500H60
Cable Management Solutions – BAKS
162850
Cable Management Solutions – BAKS
4.20
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
500
Add
KKP600H60
Cable Management Solutions – BAKS
162860
Cable Management Solutions – BAKS
5.67
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
600
Add
