1.5

Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
PN-EN 10346:2015-09 (SG)
Available finishes:
F- steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E- stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long.
L- powder coating in a full range of colours (PC)

Additional information

NOTE
Cable ladder with rungs adapted to fixing
Cable Clamps UKZ/UKZO
available upon special order:
- cable ladders 2m long
- cable ladders 150, 250 mm wide

NOTE
For horizontal assembly of ladders with rungs directly to the wall
we recommend using ladders with double riveting of rungs
to the side. Installation of the ladder additionally
strengthened with flat bars

Product versions

Add

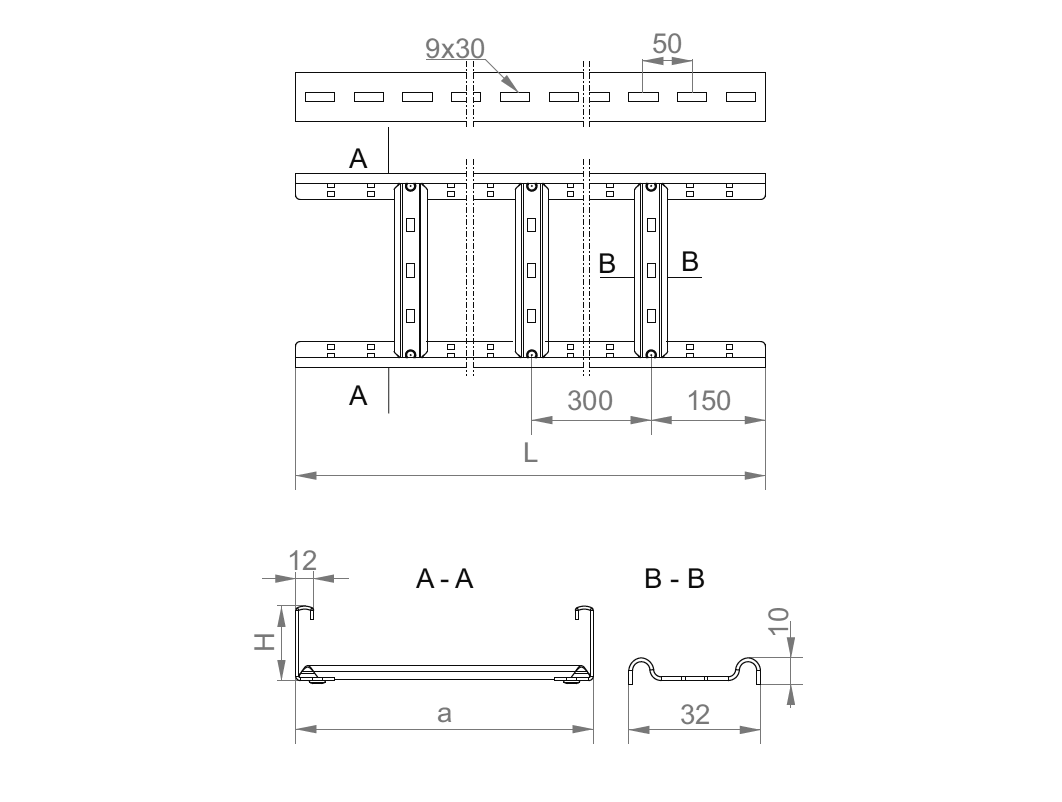

	Symbol	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
100 mm 4200 mm
	DKP100H60/3N	100	3 000 mm	4,200	2.42 kg	465410	4 / 12 pcs. / m.	Add
	DKP100H60/6N	100	6 000 mm	4,200	2.42 kg	465510	2 / 12 pcs. / m.	Add
200 mm 8400 mm
	DKP200H60/3N	200	3 000 mm	8,400	2.69 kg	465420	4 / 12 pcs. / m.	Add
	DKP200H60/6N	200	6 000 mm	8,400	2.69 kg	465520	2 / 12 pcs. / m.	Add
300 mm 12600 mm
	DKP300H60/3N	300	3 000 mm	12,600	2.97 kg	465430	2 / 6 pcs. / m.	Add
	DKP300H60/6N	300	6 000 mm	12,600	2.97 kg	465530	2 / 12 pcs. / m.	Add
400 mm 16800 mm
	DKP400H60/3N	400	3 000 mm	16,800	3.24 kg	465440	2 / 6 pcs. / m.	Add
	DKP400H60/6N	400	6 000 mm	16,800	3.24 kg	465540	2 / 12 pcs. / m.	Add
500 mm 21000 mm
	DKP500H60/3N	500	3 000 mm	21,000	3.51 kg	465450	2 / 6 pcs. / m.	Add
	DKP500H60/6N	500	6 000 mm	21,000	3.51 kg	465550	2 / 12 pcs. / m.	Add
600 mm 25200 mm
	DKP600H60/3N	600	3 000 mm	25,200	3.79 kg	465460	2 / 6 pcs. / m.	Add
	DKP600H60/6N	600	6 000 mm	25,200	3.79 kg	465560	2 / 12 pcs. / m.	Add
