KBL Cable Tray H60

Cable Management Solutions – BAKS
Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
method PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.to
PN-EN ISO 1461:2011 (HDG) only for orders:
KBJ..., KBD... and KBP...
E - stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long
L - powder coating in a full range of colours (PC)

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding one
into another and connector-free assembly. For the assembly use Screw
Sets SGK M6x12 or SG M6x12.

NOTE! The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays can
be joined only by means of connectors (no cut-outs in the tray’s side).

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

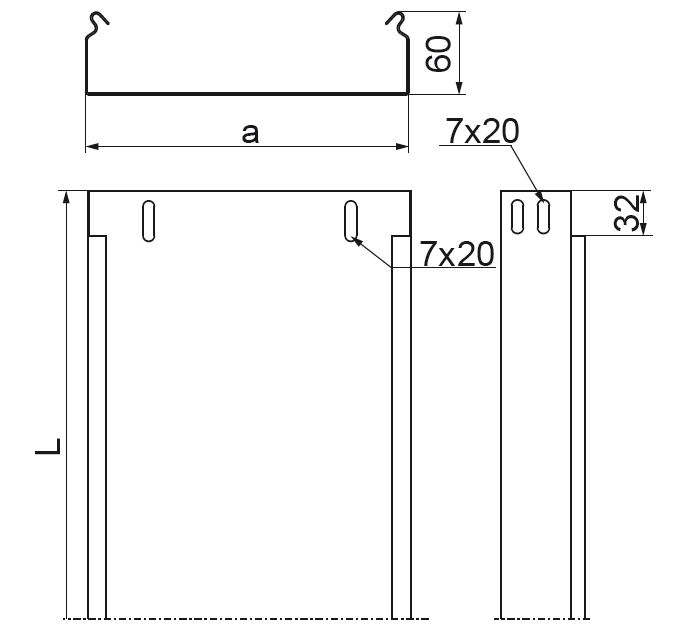

Symbol Catalogue number Length L (mm) Width a (mm) Quantity in box (pcs. / m.) Weight (1m) (kg)
Effective sectio
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
5800 mm
KBL100H60/3
Cable Management Solutions – BAKS
162010
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Cable Management Solutions – BAKS
1.44 kg
Cable Management Solutions – BAKS
5,800
Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
8800 mm
KBL150H60/3
Cable Management Solutions – BAKS
162015
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Cable Management Solutions – BAKS
1.74 kg
Cable Management Solutions – BAKS
8,800
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
11800 mm
KBL200H60/3
Cable Management Solutions – BAKS
162020
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Cable Management Solutions – BAKS
2.04 kg
Cable Management Solutions – BAKS
11,800
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
17800 mm
KBL300H60/3
Cable Management Solutions – BAKS
162030
Cable Management Solutions – BAKS
3,000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
2.64 kg
Cable Management Solutions – BAKS
17,800
Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
