Routing a cable route.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– connector-less system – connecting trays by overlapping or inserting one into the other and bolting
together with SGKM6x12 or SGM6x12 bolts

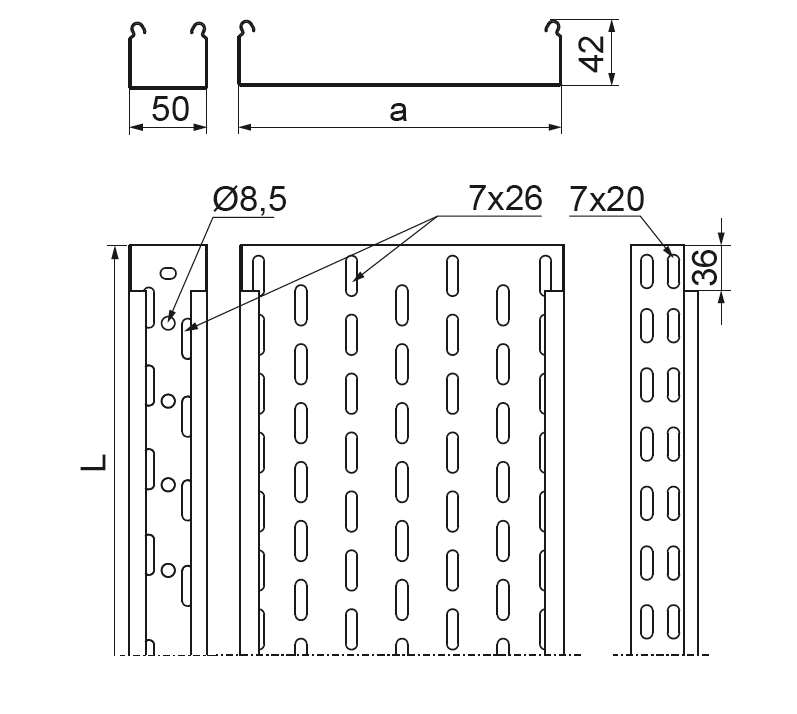

– Ø8.5 holes in the bottom of the trays with the width of 50 mm allow them to be suspended on M8 rod
– when using a replacement with a different height, all elements of the system must keep up with this parameter
– option E for thickness ≤ 1.0 mm – less dense perforation
– option F available for orders over 300 m
