Routing a cable route.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
L - painting in standard RAL colour
Additional information

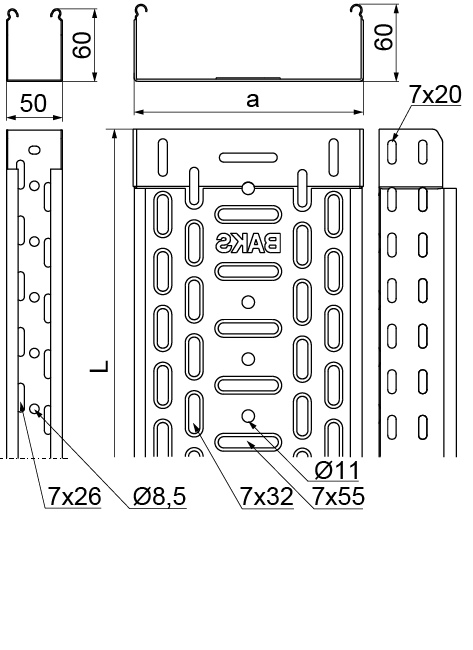

– connector-less system – connecting trays by overlapping or inserting one into the other and bolting
together with SGKM6x12 or SGM6x12 bolts
– deep embossed holes in the bottom of the tray from the width 100 mm increased strength
– The dense perforation with ribbing provides excellent heat transfer and is designed to allow the tray to be
mounted on a BAKS wall bracket anywhere
– when using a replacement with a different height, all elements of the system must keep up with this
parameter
Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.
