KGR...H60 Cable Tray H60

0.5
Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
method PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.to
PN-EN ISO 1461:2011 (HDG) only for :
- KGL... of width 50-200mm
- KGJ... of length 3m
L - powder coating in a full range of colours (PC)

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

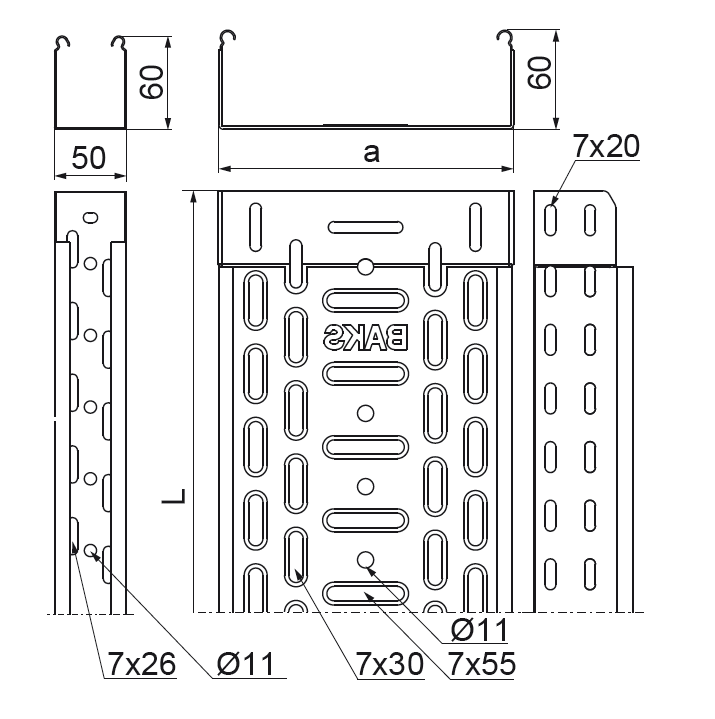

Symbol Catalogue number Length L (mm) Width a (mm) Quantity in box (pcs. / m.) Weight (1m) (kg)
Effective sectio
Plik 3D
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
2900 mm
KGR50H60/3
Cable Management Solutions – BAKS
160224
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
0.66 kg
Cable Management Solutions – BAKS
2,900
Plik *.std Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
5800 mm
KGR100H60/3
Cable Management Solutions – BAKS
161516
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
0.90 kg
Cable Management Solutions – BAKS
5,800
Plik *.std Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
8800 mm
KGR150H60/3
Cable Management Solutions – BAKS
161616
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
1.05 kg
Cable Management Solutions – BAKS
8,800
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
11800 mm
KGR200H60/3
Cable Management Solutions – BAKS
161716
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
1.26 kg
Cable Management Solutions – BAKS
11,800
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
17800 mm
KGR300H60/3
Cable Management Solutions – BAKS
161816
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
1.96 kg
Cable Management Solutions – BAKS
17,800
Plik *.std Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
