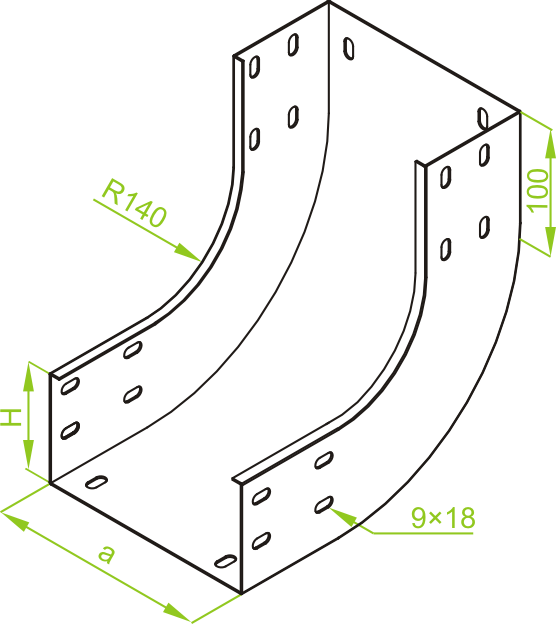

LZWCH100 90° Vertical Bend - Internal

2.0
Information

APPLICATION
Diversion in cable routing

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

For joining fittings to cable tray lengths use Straight Connectors LZC…

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

For joining fittings to cable tray lengths use Straight Connectors LZC...
and sets of Screw SGKFM8x14 or SGFM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LZWC100H100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2.26
Cable Management Solutions – BAKS
311910
Cable Management Solutions – BAKS
6
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LZWC200H100
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.01
Cable Management Solutions – BAKS
311920
Cable Management Solutions – BAKS
6
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LZWC300H100
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.61
Cable Management Solutions – BAKS
311930
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LZWC400H100
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.28
Cable Management Solutions – BAKS
311940
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LZWC500H100
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.96
Cable Management Solutions – BAKS
311950
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LZWC600H100
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.62
Cable Management Solutions – BAKS
311960
Cable Management Solutions – BAKS
2
Add
