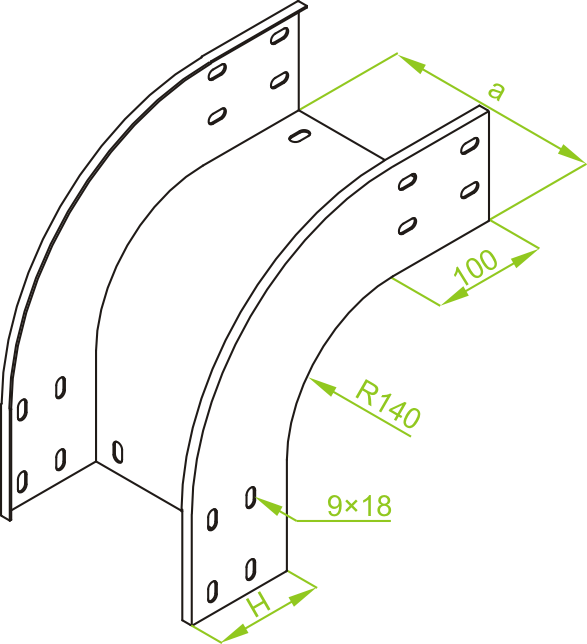

LZZCH100 90° Vertical Bend - External H100

Information

Diversion in cable routing.

Material

Steel, hot-dip galv. to PN-EN ISO 1461:2011
Available finishes:
E- stainless steel (SS), grade 1.4301 (AISI304)
L- powder coating in a full range of colours (PC)

Additional information

For joining fittings to cable tray lengths use Straight Connectors LZC...
and sets of Screw SGKFM8x14 or SGFM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LZZC100H100
Cable Management Solutions – BAKS
311510
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2.26
Cable Management Solutions – BAKS
6
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LZZC200H100
Cable Management Solutions – BAKS
311520
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.01
Cable Management Solutions – BAKS
6
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LZZC300H100
Cable Management Solutions – BAKS
311530
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.61
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LZZC400H100
Cable Management Solutions – BAKS
311540
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.28
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LZZC500H100
Cable Management Solutions – BAKS
311550
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.96
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LZZC600H100
Cable Management Solutions – BAKS
311560
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.62
Cable Management Solutions – BAKS
2
Add
