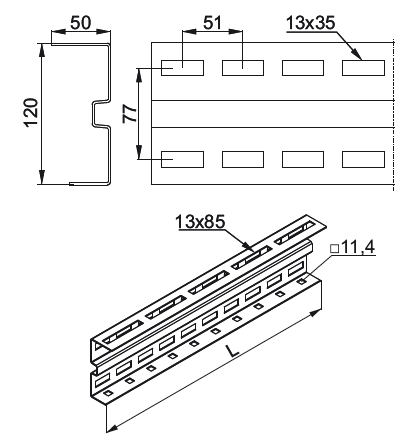

Profile for determining the inclination angle
of freestanding systems
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
- extended perforation in the upper part allows for the Installation
of panels of various dimensions without the need to drill
additional holes in the profile
- quick Installation of BDF...H120 angled profiles with CWC100H50
channels (purlins) thanks to the extension of the upper part of the
angled profiles up to 50 mm and shifting of the holes, which
enables a convenient approach from below with a socket wrench
and a screw gun
- dense and enlarged perforation in the side enables the Installation
of system within the angle range of 20-35 degrees
- perforation in the lower part allows the bracing profiles to be
screwed on without the need to use additional elements
- made of Magnelis®-coated material with very high corrosion
resistance
For the assembly use SGKFM10x20PV + PW10F Screw Sets
