As a structural element for mounting cable ladders and trays and mounting wall brackets with infinitely adjustable mounting height: WWSR..., WW..., WWS/WWSO..., WU/WUO..., WWSN..., WTL..., WWT..., WPL..., WPT…
For mounting, use PZC channel plates... and NR channel nuts...
Material
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
Available finishes:
L - painting in standard RAL colour
Additional information

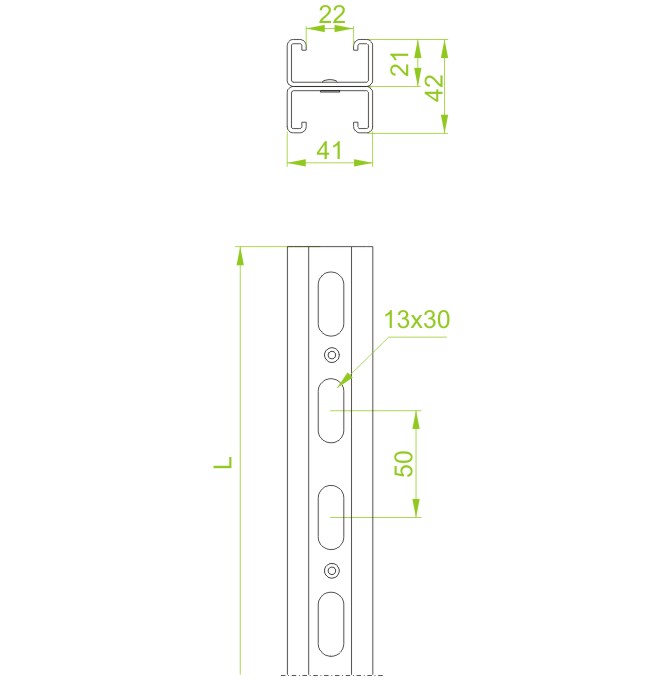

– standard riveting spacing 200 mm
– for order over 200 pcs., possibility to make in other lengths
– bases used for channels: PSCN, PSDN, and PSDDN
– use SRM10x20 bolts to join the channel with the connector
