Load-bearing system element - vertical support
posts for free-standing systems
Material
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information

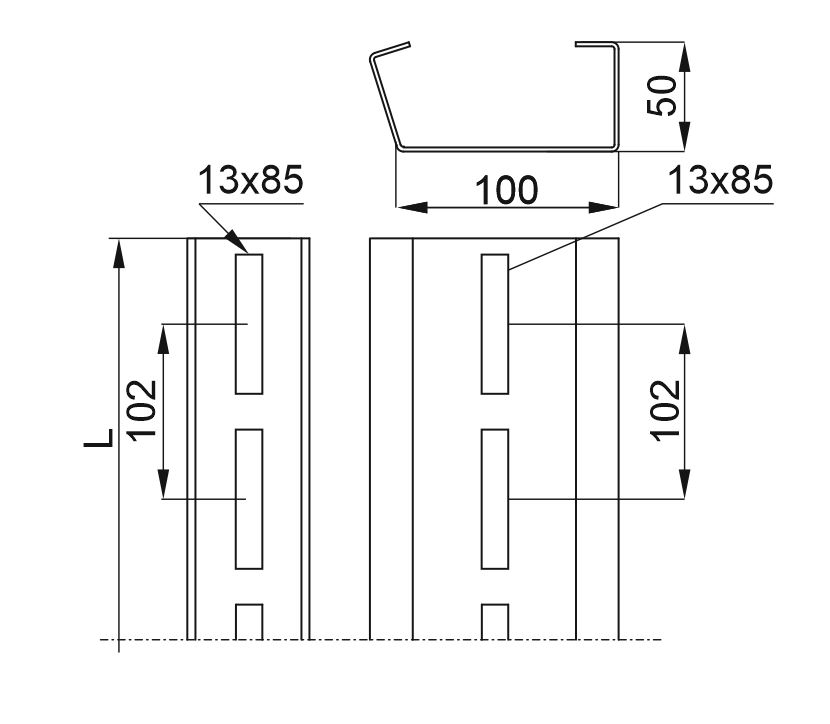

- elongated and thickened perforation allowing assembly of
the panels of various dimensions without the need for drilling
additional holes in the channel
- widened perforation allows for the use of quick assembly
rhombic nuts
- one side bent at an obtuse angle to provide mounting 25 degree
angle without the need for additional assembly elements
For the assembly use SGKFM10x20PV + PW10F Screw Sets
