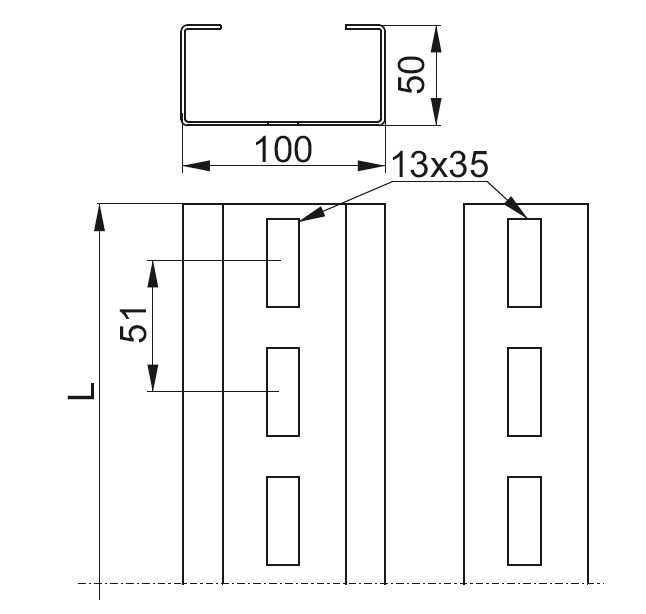

Load-bearing system element - vertical support
posts for free-standing systems
Material
S250GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information
- dense perforation enables the levelling of unevenness created
during the assembly of the system in inhomogeneous ground
and enables the assembly of the system with a slightly
changed angle of inclination
- made of Magnelis®-coated material with very high corrosion
resistance
- better blocking of the SGKFM10x20PV locking screws
(with mushroom heads) due to the change of the oval holes
into rectangular
For the assembly use SGKFM10x20PV Screw Sets
