CZDC...H45N Horizontal Cross-over

2.0
Information

Branching out cable runs.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use 8 Straight Connectors LDCH...
and 32 sets of Screw SGKM8x14

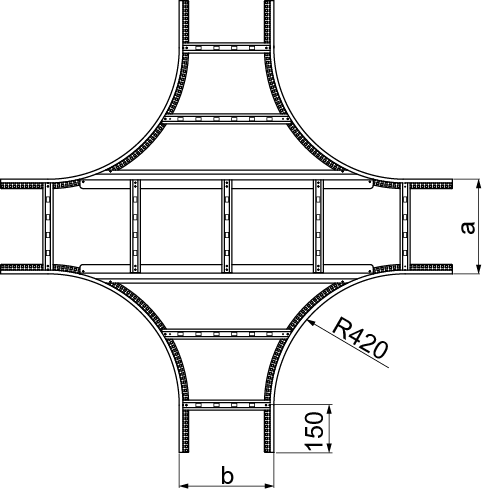

In case of special orders specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
CZDC100H45N
Cable Management Solutions – BAKS
447510
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
7.65
Cable Management Solutions – BAKS
2 		Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
CZDC200H45N
Cable Management Solutions – BAKS
447520
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
8.58
Cable Management Solutions – BAKS
2 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
CZDC300H45N
Cable Management Solutions – BAKS
447530
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
9.72
Cable Management Solutions – BAKS
2 		Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
CZDC400H45N
Cable Management Solutions – BAKS
447540
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
10.86
Cable Management Solutions – BAKS
2 		Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
CZDC500H45N
Cable Management Solutions – BAKS
447550
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12
Cable Management Solutions – BAKS
2 		Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
CZDC600H45N
Cable Management Solutions – BAKS
447560
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
13.16
Cable Management Solutions – BAKS
2 		Plik *.std Add
