CZDC...H50N Horizontal Cross-over

2.0
Information

Branching out cable runs.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use 8 Straight Connectors LDCH...
and 32 sets of Screw SGKM8x14

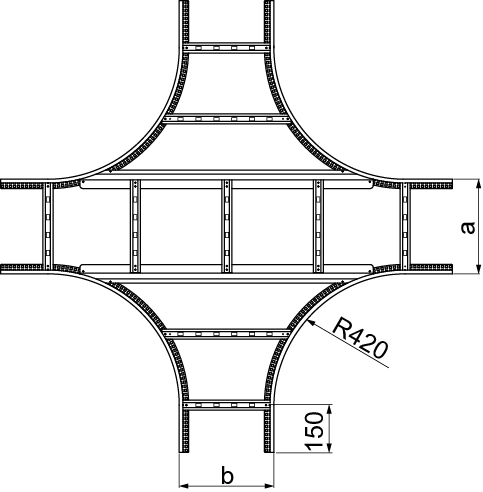

In case of special orders specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
CZDC100H50N
Cable Management Solutions – BAKS
457510
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
7.94
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
CZDC200H50N
Cable Management Solutions – BAKS
457520
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
8.89
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
CZDC300H50N
Cable Management Solutions – BAKS
457530
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
10.02
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
CZDC400H50N
Cable Management Solutions – BAKS
457540
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
11.17
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
CZDC500H50N
Cable Management Solutions – BAKS
457550
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12.32
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
CZDC600H50N
Cable Management Solutions – BAKS
457560
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
13.46
Cable Management Solutions – BAKS
2
Plik *.std Add
