CZDP/CZDOP...H60 Horizontal Cross-over

1.5 Cable Management Solutions – BAKS
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 8 LDPH60 or LDC/LDOCH60 and 32 sets of SGKM8x14 bolts for mounting

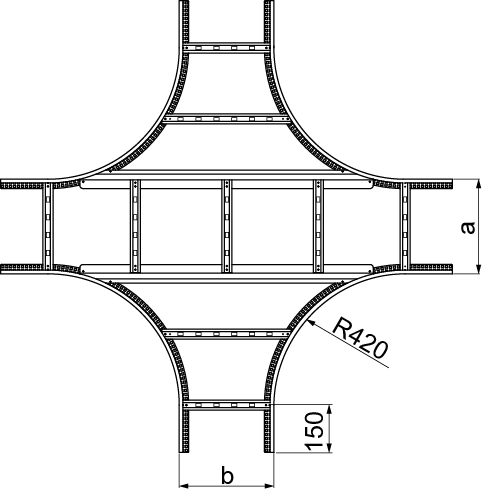

– for non-standard orders specify dimension a and b (if a=200 and b=400 the ordered fitting should have the designation CZD...200/400/200/400H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP100H60
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
6.19
Cable Management Solutions – BAKS
467410
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP200H60
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.90
Cable Management Solutions – BAKS
467420
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP300H60
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
7.75
Cable Management Solutions – BAKS
467430
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP400H60
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
8.61
Cable Management Solutions – BAKS
467440
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP500H60
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
9.47
Cable Management Solutions – BAKS
467450
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
CZDP/CZDOP600H60
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
10.33
Cable Management Solutions – BAKS
467460
Cable Management Solutions – BAKS
2
Add
