CZKSP...H110 Horizontal Cross-over

2.0
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the tray it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

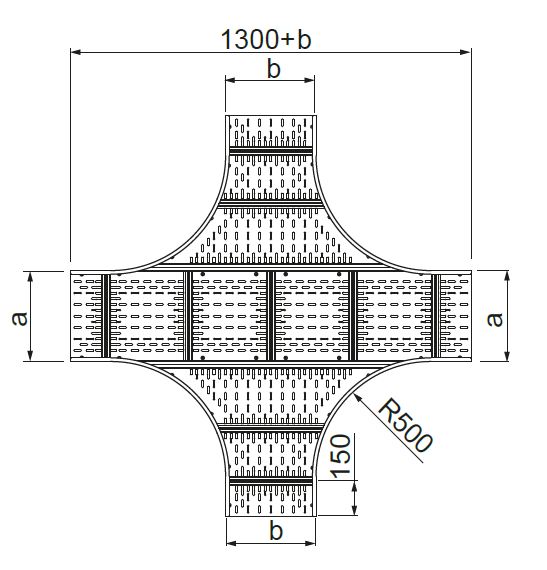

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation CZKS...400/600/400/600H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Size a=b (mm) Weight 1 pc. (kg) Quantity (pcs.)
CZKSP200H110
Cable Management Solutions – BAKS
211321
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
14.58
Cable Management Solutions – BAKS
1
Add
CZKSP300H110
Cable Management Solutions – BAKS
211331
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
17.18
Cable Management Solutions – BAKS
1
Add
CZKSP400H110
Cable Management Solutions – BAKS
211341
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
19.81
Cable Management Solutions – BAKS
1
Add
CZKSP500H110
Cable Management Solutions – BAKS
211351
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
22.53
Cable Management Solutions – BAKS
1
Add
CZKSP600H110
Cable Management Solutions – BAKS
211361
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
26.45
Cable Management Solutions – BAKS
1
Add
