Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows

the use of supports even every 10 m.

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 10 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense perforation in the bottom of the board (there is a possibility of delivering to the customer connected with couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense

perforation in the bottom of the board (there is a possibility of delivering to the customer connected with

couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

– * - product available for order over 200 m

Product versions

Add

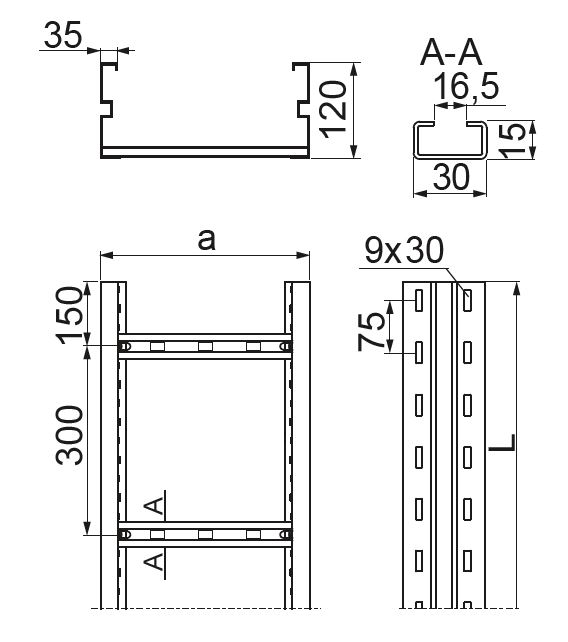

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
200 mm 22600 mm
	DSP200H120/3	3 000 mm	200	430123	2 / 6 pcs. / m.	5.70 kg	22,600	Add
	DSP200H120/6	6 000 mm	200	430226	2 / 12 pcs. / m.	5.70 kg	22,600	Add
300 mm 34600 mm
	DSP300H120/3	3 000 mm	300	430133	2 / 6 pcs. / m.	5.98 kg	34,600	Add
	DSP300H120/6	6 000 mm	300	430236	2 / 12 pcs. / m.	5.98 kg	34,600	Add
400 mm 46600 mm
	DSP400H120/3	3 000 mm	400	430143	2 / 6 pcs. / m.	6.27 kg	46,600	Add
	DSP400H120/6	6 000 mm	400	430246	2 / 12 pcs. / m.	6.27 kg	46,600	Add
500 mm 58600 mm
	DSP500H120/3	3 000 mm	500	430153	2 / 6 pcs. / m.	6.56 kg	58,600	Add
	DSP500H120/6	6 000 mm	500	430256	2 / 12 pcs. / m.	6.56 kg	58,600	Add
600 mm 70600 mm
	DSP600H120/3	3 000 mm	600	430163	2 / 6 pcs. / m.	6.85 kg	70,600	Add
	DSP600H120/6	6 000 mm	600	430266	2 / 12 pcs. / m.	6.85 kg	70,600	Add
