3.0

Information

Routing the cable route in halls or areas with limited support structures. The high strength of the trays allows the use of supports even every 12 m.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – execution without embossing in the sides and with less dense

perforation in the bottom of the board (there is a possibility of delivering to the customer connected with couplings two sections of 3 m giving length of 6 m)

– for large orders, it is possible to produce ladders with lengths from 2 to 12 m and ladders made of sheet

metal with a thickness of 1.2 or 2.5 mm

Product versions

Add

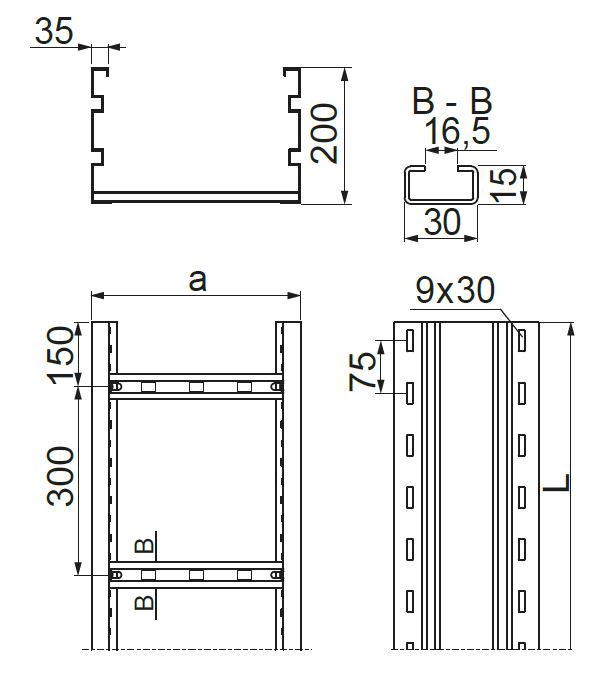

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
200 mm 37800 mm
	DST200H200/6	6 000 mm	200	433620	1 / 6 pcs. / m.	15.05 kg	37,800	Add
300 mm 57800 mm
	DST300H200/6	6 000 mm	300	433630	1 / 6 pcs. / m.	15.35 kg	57,800	Add
400 mm 77800 mm
	DST400H200/6	6 000 mm	400	433640	1 / 6 pcs. / m.	15.68 kg	77,800	Add
500 mm 97800 mm
	DST500H200/6	6 000 mm	500	433650	1 / 6 pcs. / m.	15.96 kg	97,800	Add
600 mm 117800 mm
	DST600H200/6	6 000 mm	600	433660	1 / 6 pcs. / m.	16.21 kg	117,800	Add
