1.2

Information

Cable routing

Material

Steel, strip-galv. acc. to the Sendzimir
PN-EN 10346:2015-09 (SG)
Available finishes:
F- steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E- stainless steel (SS), grade 1.4301 (AISI304),
sections to 3m long.
L- powder coating in a full range of colours (PC)

Additional information

NOTE
Cable ladder with rungs adapted
to fixing Cable Clamps UK/UKO
available upon special order:
- cable ladders 2m long
- cable ladders 150, 250mm wide
- production capability of perforated rungs

NOTE
For horizontal assembly of ladders with rungs directly to the wall
we recommend using ladders with double riveting of rungs
to the side. Installation of the ladder additionally
strengthened with flat bars

Product versions

Add

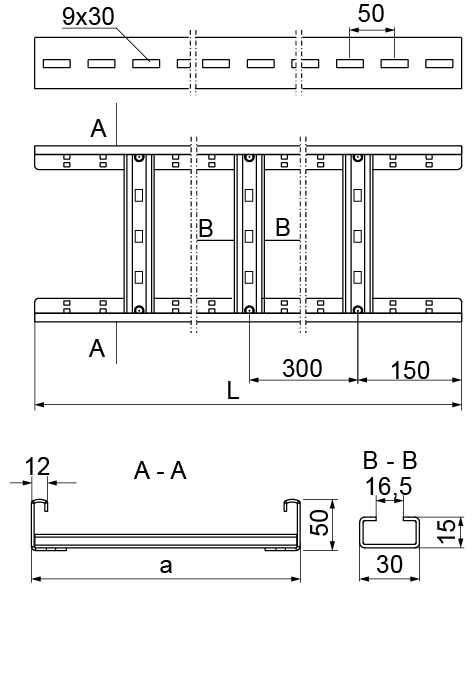

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Quantity in box (pcs. / m.)
100 mm 3200 mm
	DUD100H50/3N	456010	100	3 000 mm	3,200	1.81 kg	4 / 12 pcs. / m.	Add
200 mm 6400 mm
	DUD200H50/3N	456020	200	3 000 mm	6,400	2.04 kg	4 / 12 pcs. / m.	Add
300 mm 9600 mm
	DUD300H50/3N	456030	300	3 000 mm	9,600	2.27 kg	4 / 12 pcs. / m.	Add
400 mm 12800 mm
	DUD400H50/3N	456040	400	3 000 mm	12,800	2.61 kg	2 / 6 pcs. / m.	Add
500 mm 16000 mm
	DUD500H50/3N	456050	500	3 000 mm	16,000	2.72 kg	2 / 6 pcs. / m.	Add
600 mm 19200 mm
	DUD600H50/3N	456060	600	3 000 mm	19,200	2.95 kg	2 / 6 pcs. / m.	Add
