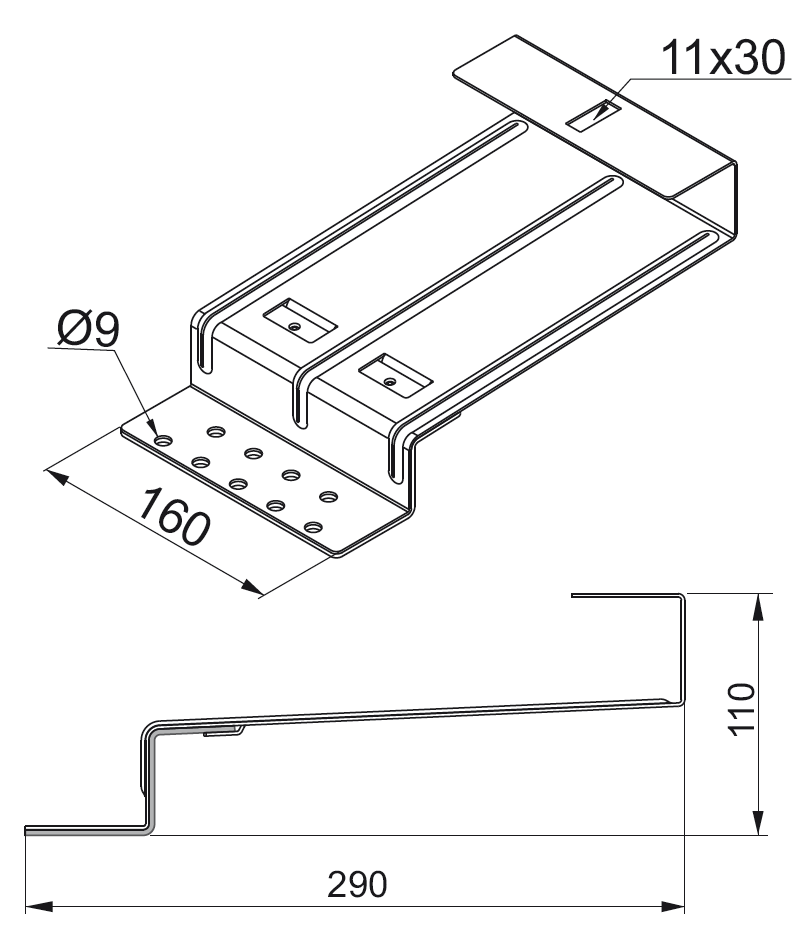

Mounting PV system elements to a roof
covered with scale-shaped tiles
Material
S250GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information
PRODUCTS AVAILABLE IN 2023
- increased strength due to the embossing in the section and the
use of an additional Z-profile
- length suited to most types of roof tiles
- longitudinal opening to adjust the position of the aluminium
profile
- Magnelis®-coated material with very high corrosion resistance
- installation of brackets without cutting the tiles
- brackets dedicated for installations exposed to greater loads -
details on technical department (contact on inner front cover)
For the assembly use 2 x DDW8x100 Wood Screws
