1.5

Information

Routing a cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– ladder with rungs suitable for mounting UK/UKO... and UKP... cable clamps

– option E – only for sections up to 3 m – design with less dense perforation in the bottom of the board

– on large order ladders available in lengths of 2 m and widths of 150 and 250 mm

– in the case of mounting ladders horizontally – rungs to the wall, it is recommended to use ladders with rungs double riveted to the board

Product versions

Add

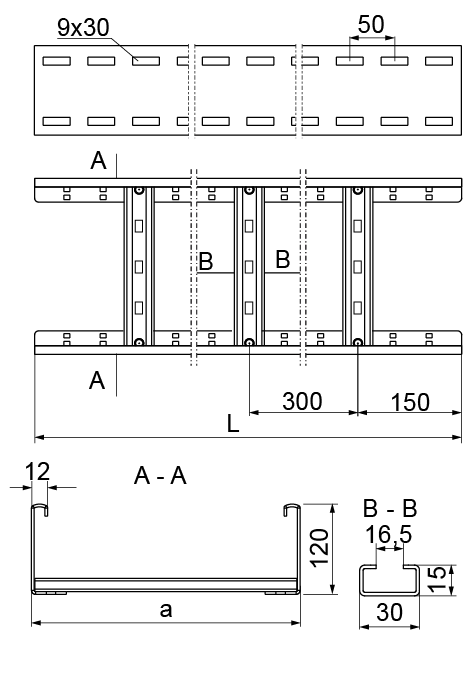

	Symbol	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
100 mm 8400 mm
	DUP100H120/3N	100	3 000 mm	8,400	3.86 kg	473010	2 / 6 pcs. / m.	Add
	DUP100H120/6N	100	6 000 mm	8,400	3.86 kg	473110	2 / 12 pcs. / m.	Add
200 mm 18400 mm
	DUP200H120/3N	200	3 000 mm	18,400	4.11 kg	473020	2 / 6 pcs. / m.	Add
	DUP200H120/6N	200	6 000 mm	18,400	4.11 kg	473120	2 / 12 pcs. / m.	Add
300 mm 28600 mm
	DUP300H120/3N	300	3 000 mm	28,600	4.41 kg	473030	2 / 6 pcs. / m.	Add
	DUP300H120/6N	300	6 000 mm	28,600	4.41 kg	473130	2 / 12 pcs. / m.	Add
400 mm 38800 mm
	DUP400H120/3N	400	3 000 mm	38,800	4.82 kg	473040	2 / 6 pcs. / m.	Add
	DUP400H120/6N	400	6 000 mm	38,800	4.82 kg	473140	2 / 12 pcs. / m.	Add
500 mm 49000 mm
	DUP500H120/3N	500	3 000 mm	49,000	4.96 kg	473050	2 / 6 pcs. / m.	Add
	DUP500H120/6N	500	6 000 mm	49,000	4.96 kg	473150	2 / 12 pcs. / m.	Add
600 mm 59200 mm
	DUP600H120/3N	600	3 000 mm	59,200	5.23 kg	473060	2 / 6 pcs. / m.	Add
	DUP600H120/6N	600	6 000 mm	59,200	5.23 kg	473160	2 / 12 pcs. / m.	Add
