ELZCH50 Adjustable Vertical Bend Element

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

2.0

Information

Increasing the radius of the adjustable bend.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SMM8x16F bolts to mount hinged elements

– possibility to form bends of any radius by adding hinged connectors

Product versions

Add

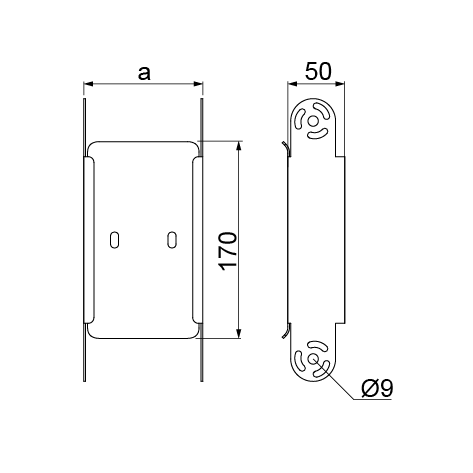

	Symbol	Width a (mm)	Weight 1 pc. (kg)	Catalogue number	Quantity (pcs.)
50 mm mm
	ELZC50H50	50	0.48	353305	10	Add
100 mm mm
	ELZC100H50	100	0.61	353310	10	Add
200 mm mm
	ELZC200H50	200	0.88	353320	10	Add
300 mm mm
	ELZC300H50	300	1.15	353330	4	Add
400 mm mm
	ELZC400H50	400	1.42	353340	4	Add
500 mm mm
	ELZC500H50	500	1.69	353350	4	Add
600 mm mm
	ELZC600H50	600	1.96	353360	4	Add
