ELZPH100 Adjustable Vertical Bend Element

1.5
Information

APPLICATION
Diversion in cable routing. Full-range angle adjustment with a lock.

Material
Hot-dip galv. steel to PN-EN ISO 1461:2011 (HDG)

Available to order:
E- stainless steel (SS)
L- powder coating in a full range of colours (PC)

To install adjustable vertical bend element use Screw Sets SM M8x16
Capability of creating adjustable vertical bends of any internal radius using artculated connectors.



Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

To install adjustable vertical bend use sets
of Screw SMM8x16.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

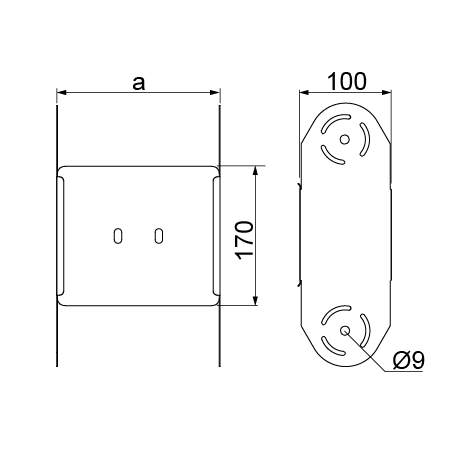

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
ELZP100H100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.75
Cable Management Solutions – BAKS
313210
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
ELZP200H100
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.95
Cable Management Solutions – BAKS
313220
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
ELZP300H100
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.15
Cable Management Solutions – BAKS
313230
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
ELZP400H100
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
1.35
Cable Management Solutions – BAKS
313240
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
ELZP500H100
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
1.56
Cable Management Solutions – BAKS
313250
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
ELZP600H100
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
1.76
Cable Management Solutions – BAKS
313260
Cable Management Solutions – BAKS
4
Add
