Information

Structure Description:

Konstrukcja wolnostojąca typu CARPORT na 4 pionowych nogach

umożliwiająca wjazd/wyjazd i bezpieczne parkowanie samochodu.

Free-standing CARPORT structure on legs arranged in V layout, allowing vehicle entry/exit and safe parking under the panel canopy.
• possibility of using panels from different manufacturers with dimensions: K2 - 1903x1134

Structure assembly instructions:

Dowload

Advantages:

• Length of elements on the pallet does not exceed 3000 mm

• Suitable for storage on indoor warehouse racks, preventing stains and discoloration caused by weather conditions

• Carport manufactured from steel components with Magnelis® coating

• Carport manufactured without welded elements

• Carport prepared for installation of sheet-metal flashings and gutters (optional)

• Installation on concrete surfaces or paving blocks does not require foundations (subsoil stability must be confirmed)

• Installation on natural ground using small, standard prefabricated foundations weighing approx. 100 kg each

• Carport suitable for self-assembly by 2–3 people

• Solutions tested for structural strength

• Possibility of modular expansion of the carport

• Delivered on EUR pallets

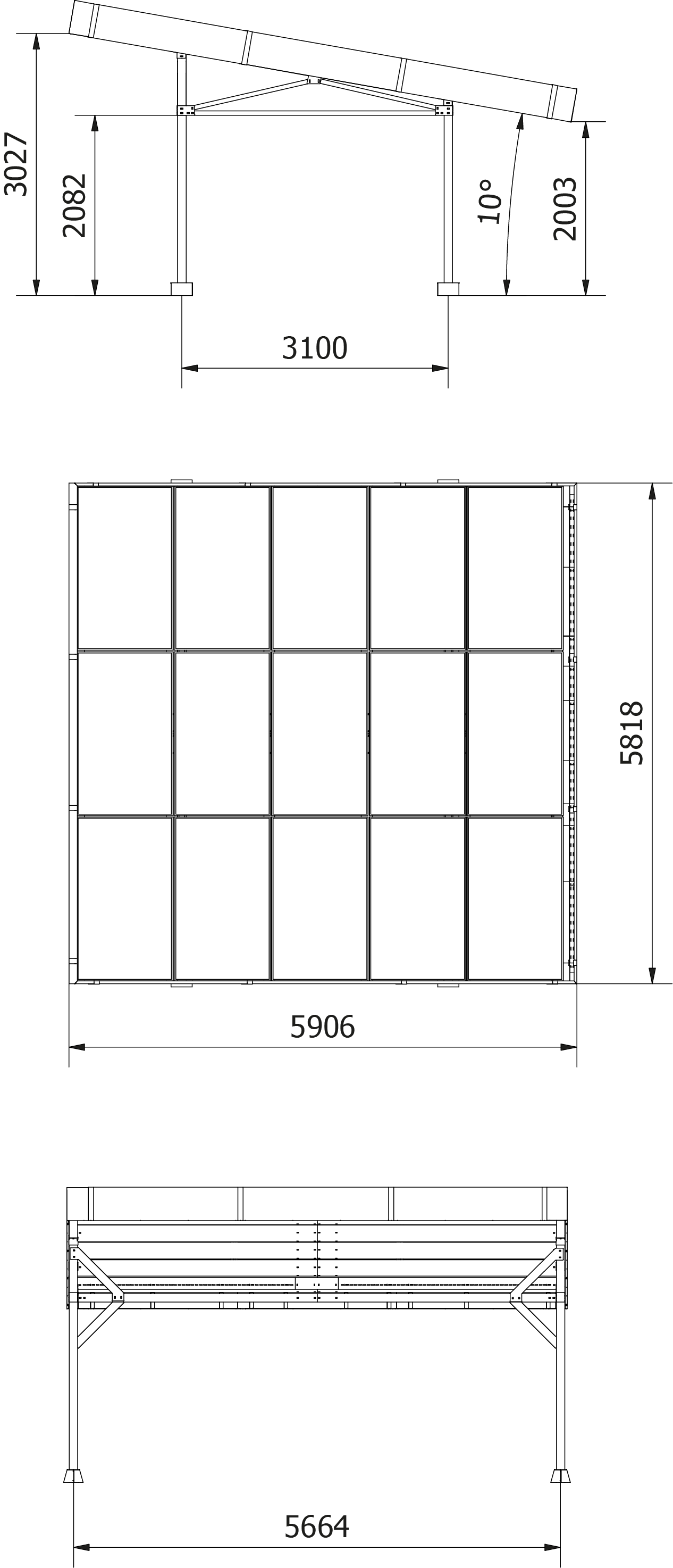

Module Layout:
· Horizontal – H

Technical Description:

Technical Description:

MC – Structural steel with Magnelis®, MagiZinc®, PosMac coating (structural profiles)

L- Powder coating in black RAL9005

F- Zinc flake-coated steel (fastening screws)

• The structure has been tested for strength.

Warianty montażowe konstrukcji:
• kotwiona

Guarantee:
BAKS provides a 10-year warranty on the components of the supporting structure, provided all manufacturer warranty conditions are met. Warranty extensions are available upon meeting additional requirements.

Product versions

Add

	Symbol	Catalogue number	Weight 1 pc. (kg)
	K2O	811311	890.74	Add
