Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

NOTE!
The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays
can be joined only by means of connectors (no cut-outs in the
tray’s side). Use SGKM6x12 or SGM6x12 screws

Product versions

Add

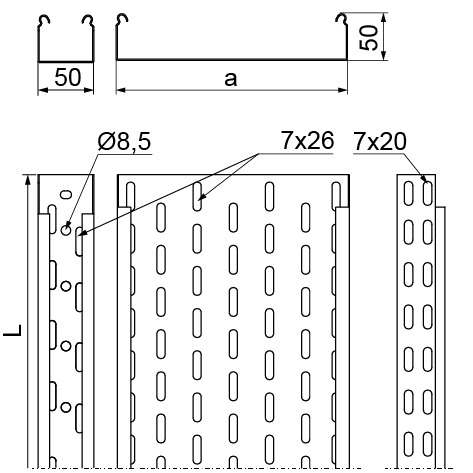

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2300 mm
	KGJ/KCJ50H50/3	150605	50	3 000 mm	0.99 kg	4 / 12 pcs. / m.	2,300	Add
100 mm 4800 mm
	KCJ100H50/3	151010	100	3 000 mm	1.38 kg	4 / 12 pcs. / m.	4,800	Add
150 mm 7300 mm
	KCJ150H50/3	151015	150	3 000 mm	1.70 kg	4 / 12 pcs. / m.	7,300	Add
200 mm 9800 mm
	KCJ200H50/3	151020	200	3 000 mm	1.97 kg	4 / 12 pcs. / m.	9,800	Add
300 mm 14800 mm
	KCJ300H50/3	151030	300	3 000 mm	2.66 kg	2 / 6 pcs. / m.	14,800	Add
400 mm 19800 mm
	KCJ400H50/3	150440	400	3 000 mm	3.24 kg	2 / 6 pcs. / m.	19,800	Add
500 mm 24800 mm
	KCJ500H50/3	150450	500	3 000 mm	3.74 kg	2 / 6 pcs. / m.	24,800	Add
600 mm 29800 mm
	KCJ600H50/3	150460	600	3 000 mm	4.37 kg	2 / 6 pcs. / m.	29,800	Add
