Changing the direction of the cable route.
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
– before installing the ELM1000 masking element, it is necessary to cut it to a length that allows it to be
screwed to the LDUWH connector... and the bottom of the trays.
– to connect two trays with a connector, it is necessary to use SGKM8x16 or SGNM8x16 and SGKM6x16 or
SGNM6x16 bolts
– application advantages: stable and strong connection, possibility of making a bend at any point of
the cable route, possibility of connecting cable routes of different widths, possibility of replacing from
the already used solution of the element with a complete extension connector, adaptation to all heights
of self-supporting routes, the bottom of the inner connector provides additional protection for cables
installed along the route

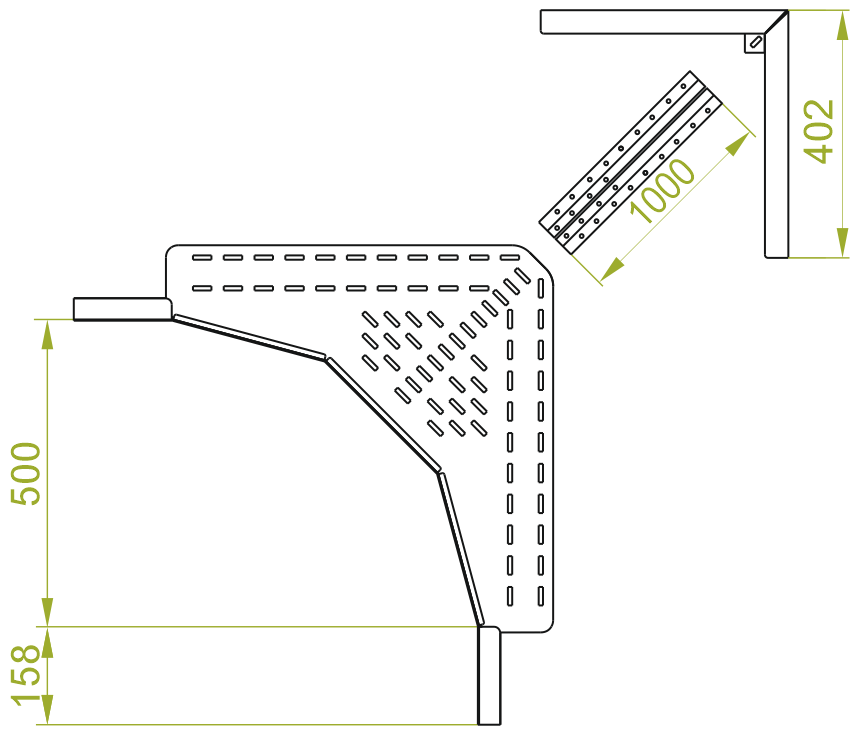

– specification: LDUWH... inner extension connector, ELM1000 masking element, LKUZH... outer
angle connector
