KDS/KDSO...H60 Wire Mesh Cable Tray

0.0 Cable Management Solutions – BAKS
Information

Routing a cable route.

Material

G - galvanised

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

All wire mesh cable trays has smooth cutted wire ends to prevent cable damage

All images
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

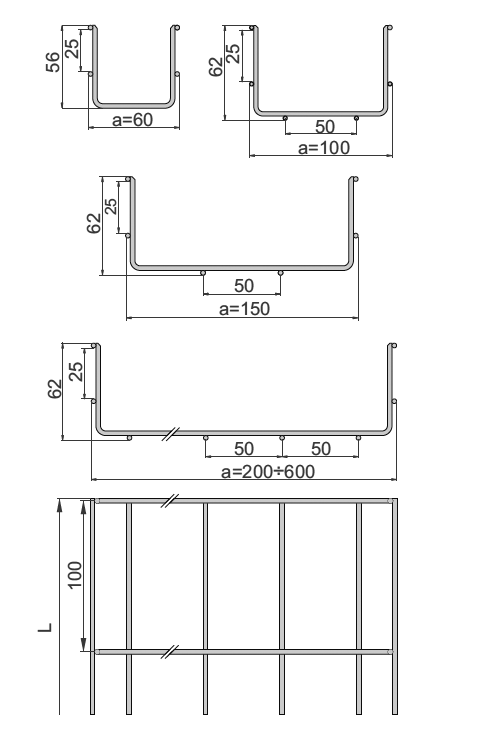

Symbol Catalogue number Width a (mm) Length L (mm) Quantity in box (pcs. / m.) Weight (1m) (kg) Średnica drutu (mm) 3D file
Cable Management Solutions – BAKS
60 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO60H60/3
Cable Management Solutions – BAKS
970106
Cable Management Solutions – BAKS
60
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Cable Management Solutions – BAKS
0.51 kg
Cable Management Solutions – BAKS
3.80 		Plik *.std Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO100H60/3
Cable Management Solutions – BAKS
970110
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Cable Management Solutions – BAKS
0.73 kg
Cable Management Solutions – BAKS
3.80 		Plik *.std Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO150H60/3
Cable Management Solutions – BAKS
970115
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8 / 24 pcs. / m.
Cable Management Solutions – BAKS
0.78 kg
Cable Management Solutions – BAKS
3.80 		Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO200H60/3
Cable Management Solutions – BAKS
970120
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
1 kg
Cable Management Solutions – BAKS
3.80 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO300H60/3
Cable Management Solutions – BAKS
970130
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
1.76 kg
Cable Management Solutions – BAKS
4.50 		Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO400H60/3
Cable Management Solutions – BAKS
970140
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
2.14 kg
Cable Management Solutions – BAKS
4.50 		Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO500H60/3
Cable Management Solutions – BAKS
970150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
3.09 kg
Cable Management Solutions – BAKS
5 		Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
KDS/KDSO600H60/3
Cable Management Solutions – BAKS
970160
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
3.56 kg
Cable Management Solutions – BAKS
5 		Plik *.std Add
