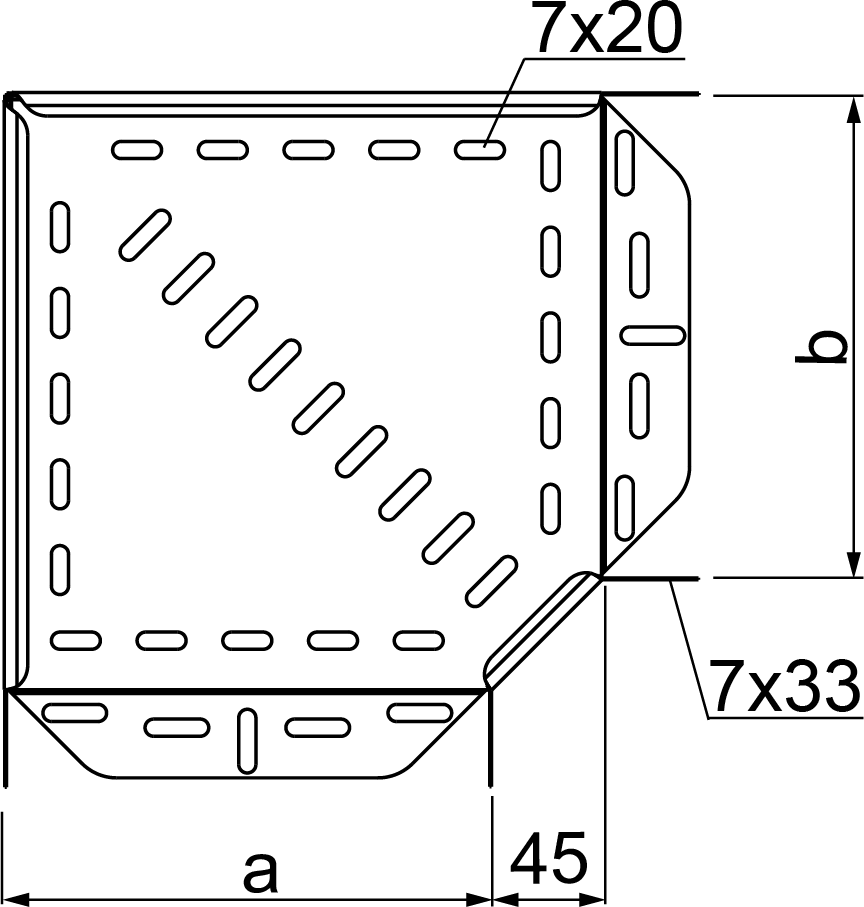

Changing the direction of the cable route.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
For the assembly use Screw Sets SGKM6x12 or SGM6x12.
In case of special orders please specify dimensions a and b.
Note
Integrated couplers. Assembly without additional couplers.
Integrated couplers. Assembly without additional couplers.
