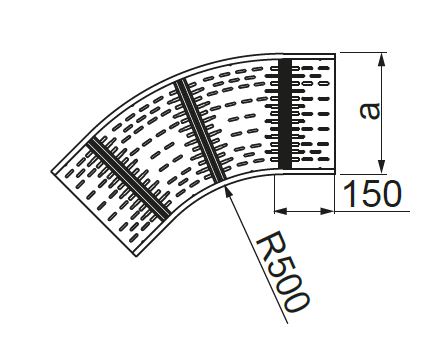

KKSMC...H120 Horizontal Bend 45°

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the tray it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
KKSMC200H120
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.57
Cable Management Solutions – BAKS
240822
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
KKSMC300H120
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
7.94
Cable Management Solutions – BAKS
240832
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
KKSMC400H120
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
9.42
Cable Management Solutions – BAKS
240842
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
KKSMC500H120
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
10.90
Cable Management Solutions – BAKS
240852
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
KKSMC600H120
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
12.60
Cable Management Solutions – BAKS
240862
Cable Management Solutions – BAKS
1 		Add
