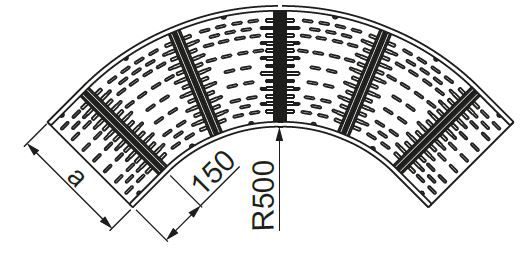

KKSP...H110 Horizontal Bend 90°

1.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the tray it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
KKSP200H110
Cable Management Solutions – BAKS
211021
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
7.33
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
KKSP300H110
Cable Management Solutions – BAKS
211031
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
9.08
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
KKSP400H110
Cable Management Solutions – BAKS
211041
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
10.87
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
KKSP500H110
Cable Management Solutions – BAKS
211051
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
12.86
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
KKSP600H110
Cable Management Solutions – BAKS
211061
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
14.65
Cable Management Solutions – BAKS
1 		Add
