KMPH100 Cable Tray

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

1.5

Information

Routing machine power supply cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

Additional information

– on request it is possible to make trays of 3 m in length

Product versions

Add

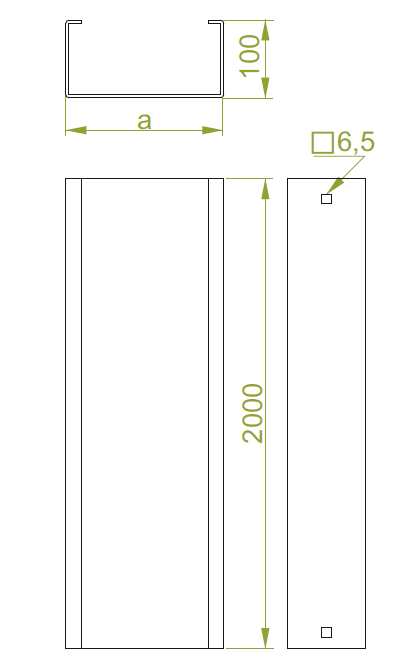

	Symbol	Catalogue number	Width a (mm)	Weight (1m) (kg)	Quantity in box (m.)
100 mm mm
	KMP100H100/2	813510	100	3.95 kg	4 pcs.	Add
200 mm mm
	KMP200H100/2	813520	200	5.19 kg	4 pcs.	Add
300 mm mm
	KMP300H100/2	813530	300	6.42 kg	4 pcs.	Add
400 mm mm
	KMP400H100/2	813540	400	7.66 kg	4 pcs.	Add
500 mm mm
	KMP500H100/2	813550	500	8.89 kg	4 pcs.	Add
600 mm mm
	KMP600H100/2	813560	600	10.13 kg	4 pcs.	Add
