KMSPP...H15 Ship cable tray

1.5
1.5 Cable Management Solutions – BAKS
Information

Conducting cable routing on ships, platforms and other marine facilities.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

Additional information

– to connect the trays, use SGKFM6x12 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

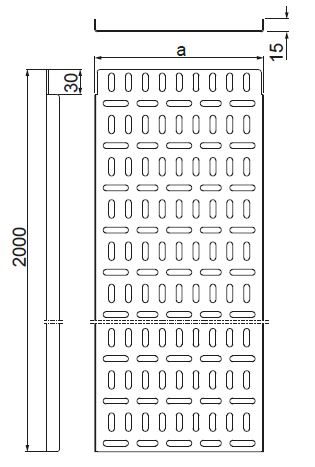

Symbol Catalogue number Width a (mm) Length L (mm) Weight (1m) (kg) Quantity in box (pcs. / m.) 3D file
Cable Management Solutions – BAKS
75 mm
Cable Management Solutions – BAKS
mm
KMSPP75H15/2
Cable Management Solutions – BAKS
815157
Cable Management Solutions – BAKS
75
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
0.94 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
KMSPP100H15/2
Cable Management Solutions – BAKS
815151
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.12 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
125 mm
Cable Management Solutions – BAKS
mm
KMSPP125H15/2
Cable Management Solutions – BAKS
815158
Cable Management Solutions – BAKS
125
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.38 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
mm
KMSPP150H15/2
Cable Management Solutions – BAKS
815150
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.56 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
KMSPP200H15/2
Cable Management Solutions – BAKS
815152
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
1.98 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
250 mm
Cable Management Solutions – BAKS
mm
KMSPP250H15/2
Cable Management Solutions – BAKS
815155
Cable Management Solutions – BAKS
250
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
2.43 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
KMSPP300H15/2
Cable Management Solutions – BAKS
815153
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
2 000 mm
Cable Management Solutions – BAKS
2.79 kg
Cable Management Solutions – BAKS
1 / 2 pcs. / m. 		Plik *.std Add
