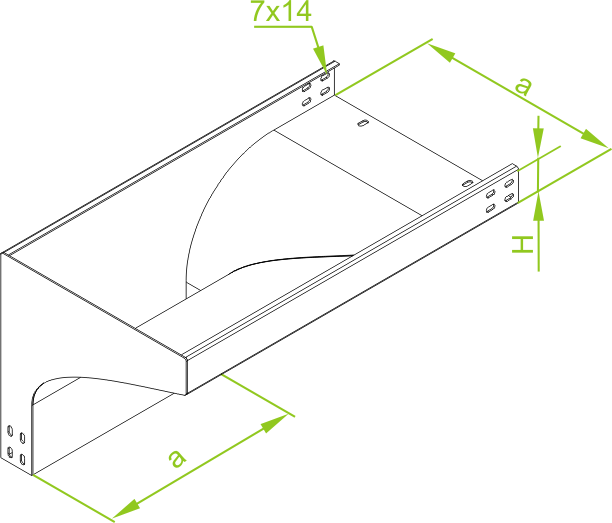

KRLZPH50 Vertical Elbow - Left

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

1.5

Information

Changing the direction of cable routing from a horizontal string to a vertical string.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– to connect the fitting to the tray, use the LCC connector... or a set of LZC... connectors and SGKFM6x12 or SGFM6x12 bolts

Product versions

Add

	Symbol	Width a (mm)	Weight 1 pc. (kg)	Catalogue number	Quantity (pcs.)
50 mm mm
	KRLZP50H50	50	2	354605	10	Add
100 mm mm
	KRLZP100H50	100	2.49	354610	10	Add
200 mm mm
	KRLZP200H50	200	3.26	354620	10	Add
300 mm mm
	KRLZP300H50	300	4.06	354630	4	Add
400 mm mm
	KRLZP400H50	400	4.96	354640	4	Add
500 mm mm
	KRLZP500H50	500	5.90	354650	4	Add
600 mm mm
	KRLZP600H50	600	6.90	354660	4	Add
