Information

Cable routing.
Use only in corrosion category C1

Material

G - galvanised

Available finishes:

L - painting in standard RAL colour

Additional information

– galvanised wire before the welding process (visible weld marks). The ends of the wires may be covered with a rusty patina, which is due to production technology.

– production triggered for larger orders

– all wires in mesh trays are chamfered which prevents damage to cables

Product versions

Add

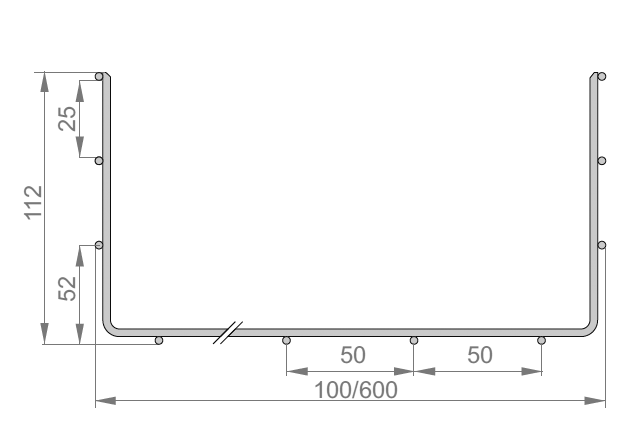

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Effective section	Weight (1m) (kg)	Quantity in box (pcs. / m.)
100 mm 8600 mm
	KSG100H110/3	912210	100	3 000 mm	8,600	1.01 kg	2 / 6 pcs. / m.	Add
200 mm 18600 mm
	KSG200H110/3	912220	200	3 000 mm	18,600	1.76 kg	2 / 6 pcs. / m.	Add
300 mm 28800 mm
	KSG300H110/3	912230	300	3 000 mm	28,800	2.14 kg	2 / 6 pcs. / m.	Add
400 mm 39000 mm
	KSG400H110/3	912240	400	3 000 mm	39,000	3.09 kg	2 / 6 pcs. / m.	Add
500 mm 49200 mm
	KSG500H110/3	912250	500	3 000 mm	49,200	3.56 kg	2 / 6 pcs. / m.	Add
600 mm 59400 mm
	KSG600H110/3	912260	600	3 000 mm	59,400	4.03 kg	2 / 6 pcs. / m.	Add
